Audio Input Jack Connector

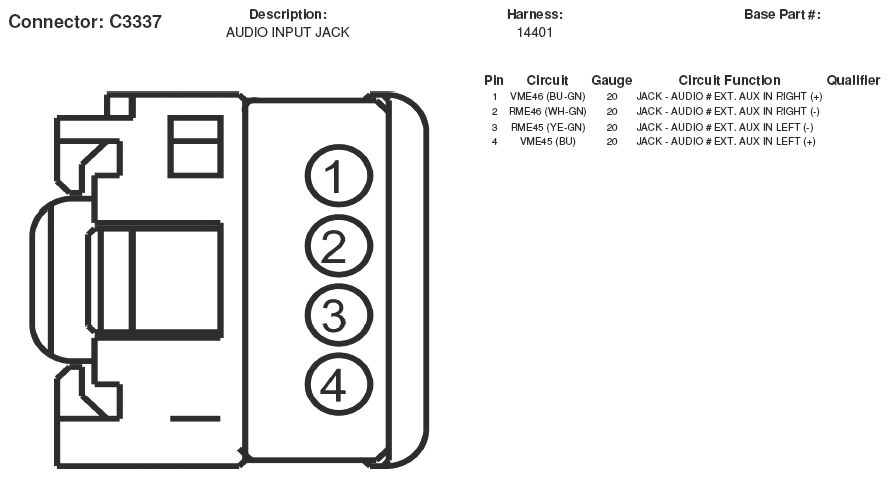

Fig 1: Audio Input Jack Connector End View (C3337)

G05166956

Courtesy of FORD MOTOR CO.
