Seat - Exploded View, Second Row

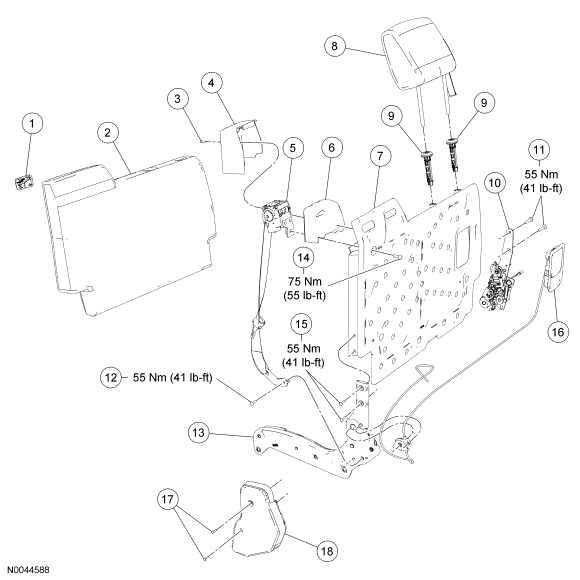

Fig 1: Exploded View Of Second Row Seat, 60 Percent E-Z Entry Backrest With Torque Specifications
GF0026349Courtesy of FORD MOTOR CO.
Item Part Number Description
1 610D72 Safety belt bezel
2 66600/66800 Backrest trim cover/backrest foam pad
3 - Pin-type retainer (part of 605C10)
4 613C46 Safety belt retractor cover
5 611B64 Safety belt retractor
6 611D52 Safety belt retractor insulator
7 613A38 Backrest frame
8 - Head restraint
9 610A16 Head restraint guides (2 required)
10 61382 Outboard recliner
11 - Outboard recliner-to-backrest frame bolts (2 required) (part of 605C10)
12 - Safety belt anchor bolt (part of 605C10)
13 61383 Inboard recliner
14 - Safety belt retractor bolt (part of 605C10)
15 - Inboard recliner-to-backrest frame bolts (2 required) (part of 605C10)
16 601L60 Kneeling mechanism release handle and cable
17 - Screws (2 required) (part of 605C10)
18 61349 Inboard recliner outer cover

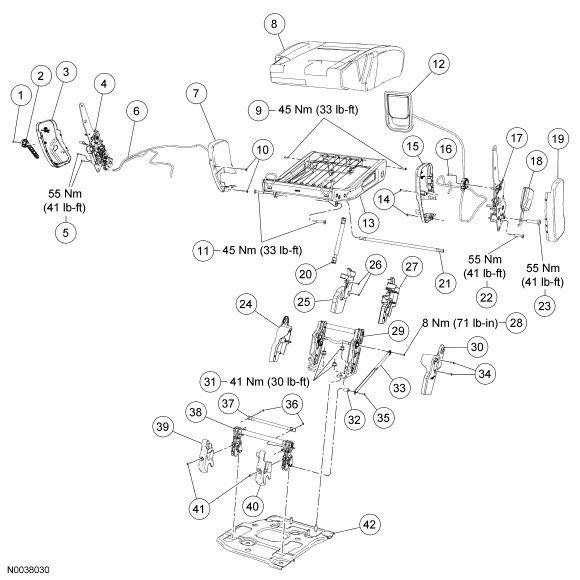

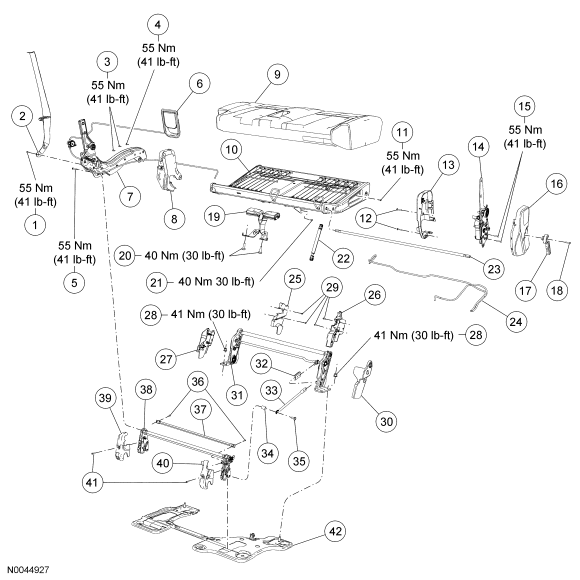

Fig 2: Exploded View Of Second Row Seat, 60 Percent, E-Z Entry Cushion With Torque Specifications
GF0026350Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt anchor bolt (part of 605C10)
2 - Safety belt anchor (part of 611B64)
3 - Inboard recliner-to-cushion frame bolts (2 required) (part of 605C10)
4 - Inboard recliner-to-kneeling mechanism bolt (part of 605C10)
5 - Inboard recliner-to-latch foot assembly bolt (part of 605C10)
6 601L60 Kneeling mechanism release handle and cable
7 61383 Inboard recliner
8 61349 Inboard recliner inner cover
9 63804/63840 Cushion trim cover/cushion foam pad
10 63160 Cushion frame
11 - Cushion frame-to-kneeling mechanism bolt (part of 605C10)
12 - Screws (2 required) (part of 605C10)
13 61348 Outboard recliner inner cover
14 61382 Outboard recliner
15 - Outboard recliner-to-cushion frame bolts (2 required) (part of 605C10)
16 61348 Outboard recliner outer cover
17 62418 Recliner handle
18 - Screw (part of 605C10)
19 611C72 Safety belt buckle assembly
20 W700883 Safety belt buckle assembly bolts (2 required)
21 - Cushion frame-to-latch foot assembly bolt (part of 605C10)
22 624B74 Shock
23 61382 Recliner release shaft
24 601L60 Cable assembly
25 81349 Kneeling mechanism inboard leg inner cover
26 81348 Kneeling mechanism outboard leg inner cover
27 81349 Kneeling mechanism inboard leg outer cover
28 - Kneeling mechanism-to-mounting plate nuts (2 required) (part of 605C10)
29 - Screws (4 required) (part of 605C10)
30 81348 Kneeling mechanism outboard leg outer cover
31 61382 Kneeling mechanism
32 - Latch feet retracting link retainer
33 61382 Latch feet retracting link
34 - Spacer
35 - Bolt (part of 605C10)
36 - Screws (2 required) (part of 605C10)
37 - Latch feet release bar
38 61382 Latch feet assembly
39 61349 Inboard latch foot cover
40 61348 Outboard latch foot cover
41 - Screws (2 required) (part of 605C10)
42 606A50 Mounting plate

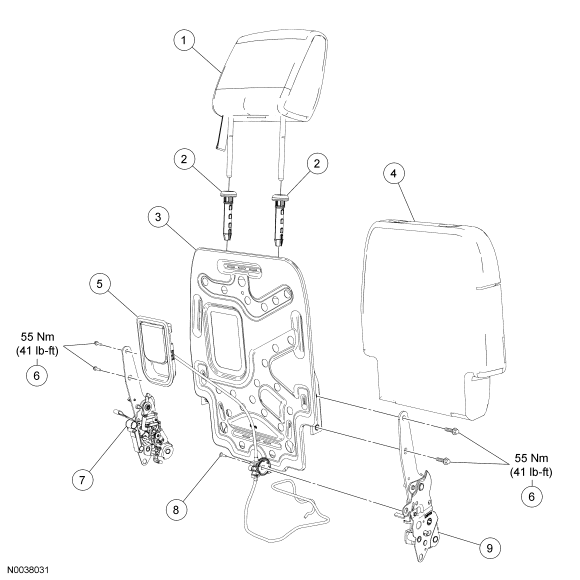

Fig 3: Exploded View Of Second Row Seat, 40 Percent E-Z Entry Backrest With Torque Specifications
GF0026351Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611A09 Head restraint
2 610A16 Head restraint guides (2 required)
3 613A39 Backrest frame
4 66601/66801 Backrest trim cover/backrest foam pad
5 601L60 Kneeling mechanism release handle and cable
6 - Recliner-to-backrest frame bolts (4 required) (part of 605C10)
7 61383 Outboard recliner
8 - Screw (part of 605C10)
9 61383 Inboard recliner
Fig 4: Exploded View Of Second Row Seat, 40 Percent, E-Z Entry Cushion With Torque Specifications
GF0026352Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Screw (part of 605C10)
2 62419 Recliner handle
3 61349 Outboard recliner outer cover
4 61383 Outboard recliner
5 - Outboard recliner-to-cushion frame bolts (2 required) (part of 605C10)
6 601L60 Cable assembly
7 61349 Outboard recliner inner cover
8 63805/63841 Cushion trim cover/cushion foam pad
9 - Cushion frame-to-kneeling mechanism bolts (2 required) (part of 605C10)
10 - Screws (2 required) (part of 605C10)
11 - Cushion frame-to-latch feet assembly bolts (2 required) (part of 605C10)
12 601L60 Kneeling mechanism release handle and cable
13 63161 Cushion frame
14 - Screws (2 required) (part of 605C10)
15 61348 Inboard recliner inner cover
16 - Screw (part of 605C10)
17 61383 Inboard recliner
18 611C73 Safety belt buckle
19 61348 Inboard recliner outer cover
20 624B75 Shock
21 61383 Recliner release shaft
22 - Inboard recliner-to-cushion frame bolt (part of 605C10)
23 - Inboard recliner and safety belt buckle-to-cushion frame bolt (part of 605C10)
24 61349 Kneeling mechanism outboard leg outer cover
25 61349 Kneeling mechanism outboard leg inner cover
26 - Screws (2 required) (part of 605C10)
27 81348 Kneeling mechanism inboard leg inner cover
28 - Latch feet retracting link-to-kneeling mechanism bolt (part of 605C10)
29 61383 Kneeling mechanism
30 81348 Kneeling mechanism inboard leg outer cover
31 - Kneeling mechanism-to-mounting plate nuts (2 required) (part of 605C10)
32 - Spacer
33 61383 Latch feet retracting link
34 - Screws (2 required) (part of 605C10)
35 - Latch feet retracting link-to-latch feet assembly bolt (part of 605C10)
36 - Screws (part of 605C10)
37 - Latch feet release bar
38 61383 Latch feet assembly
39 61349 Outboard latch foot cover
40 61348 Inboard latch foot cover
41 - Screws (2 required) (part of 605C10)
42 606A51 Mounting plate

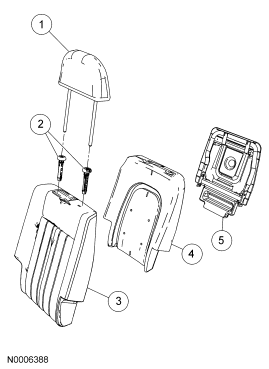

Fig 5: Exploded View Of Second Row Seat, Bucket, Backrest
GF0026353Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611A08 Head restraint
2 610A16 Head restraint sleeves (2 required)
3 66601 Backrest trim cover
4 66801 Backrest foam pad
5 613A39 Backrest frame

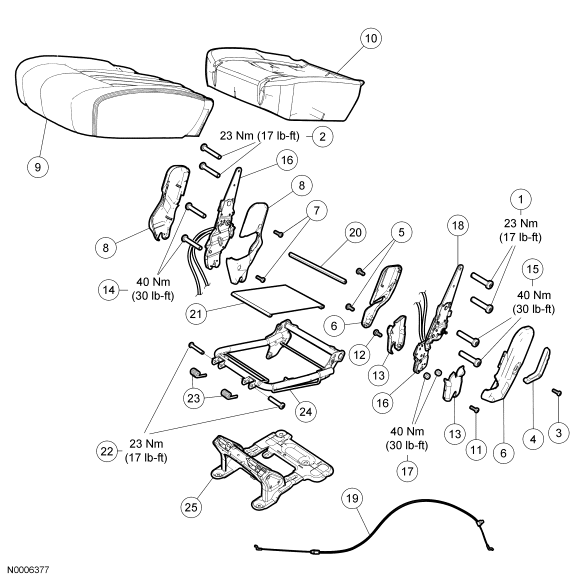

Fig 6: Exploded View Of Second Row Seat, Bucket, Cushion With Torque Specifications
GF0026354Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Upper latch bolts (part of 605C10) (2 required)
2 - Upper latch bolts (part of 605C10) (2 required)
3 - Release handle screw (part of 605C10)
4 62419 Release handle
5 56906-S Latch cover screws (2 required)
6 61349 Latch covers (2 required)
7 56906-S Latch cover screws (2 required)
8 61349 Latch covers (2 required)
9 63805 Cushion trim cover
10 63841 Cushion foam pad
11 56906-S Lower latch cover screw
12 56906-S Lower latch cover screw
13 61349 Lower latch covers (2 required)
14 - Lower latch bolts (part of 605C10) (2 required)
15 - Lower latch bolts (part of 605C10) (2 required)
16 61383 Latch
17 - Outboard lower latch nuts (part of 605C10) (2 required)
18 61383 Latch pivot
19 7801L60 Riser attachment cable
20 61332 Torsion rod
21 63844 Cushion pad support
22 - Front spring hinge bolts (part of 605C10) (2 required)
23 605A76 Pivot springs (2 required)
24 631B79 Seat cushion frame
25 600A87 Floor riser

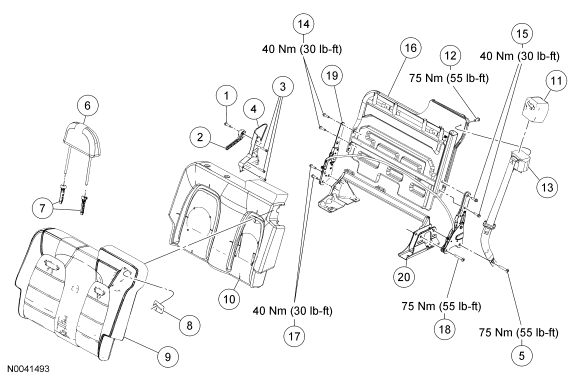

Fig 7: Exploded View Of Second Row Seat, 60 Percent Bench, Backrest With Torque Specifications
GF0026355Courtesy of FORD MOTOR CO.
Item Part Number Description
1 851334 Release handle screw
2 851282 Release handle
3 851334 Latch cover screws (3 required)
4 851260 Latch cover
5 851336 Lower safety belt anchor bolt
6 611A08 Head restraint
7 610A16 Head restraint sleeves (2 required)
8 610D72 Safety belt guide cover
9 66601 Backrest trim cover
10 66801 Backrest foam pad
11 613C46 Safety belt retractor cover
12 N807750-S Safety belt retractor bolt
13 611B64 Safety belt retractor
14 W505237-S Upper latch bolts (2 required)
15 W505237-S Upper latch bolts (2 required)
16 613A38 Backrest frame
17 W505237-S Lower outboard latch bolts (2 required)
18 - Lower inboard latch bolt (part of 605C10)
19 61382 Latch assembly
20 600A86 Riser frame

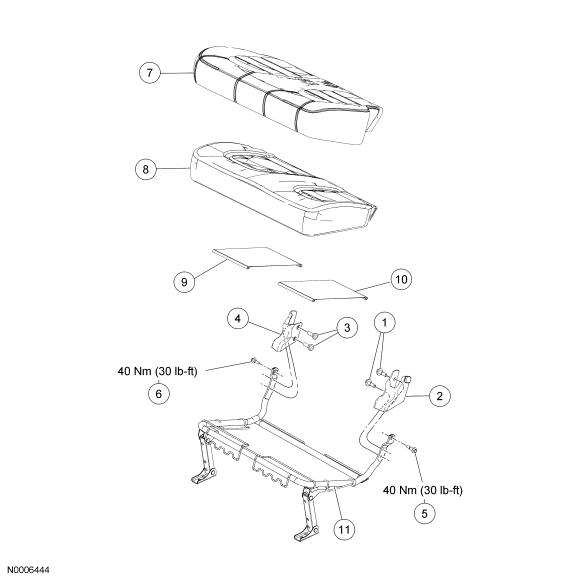

Fig 8: Exploded View Of Second Row Seat, 60 Percent Bench, Cushion With Torque Specifications
GF0026356Courtesy of FORD MOTOR CO.
Item Part Number Description
1 854182 Latch cover screws (2 required)
2 820007 Latch cover
3 854182 Latch cover screws (2 required)
4 851262 Latch cover
5 - Upper pivot latch bolt (part of 605C10)
6 - Upper pivot latch bolt (part of 605C10)
7 63805 Cushion trim cover
8 63840 Cushion foam pad
9 63844 Cushion pad support
10 63844 Cushion pad support
11 631B79 Seat cushion frame

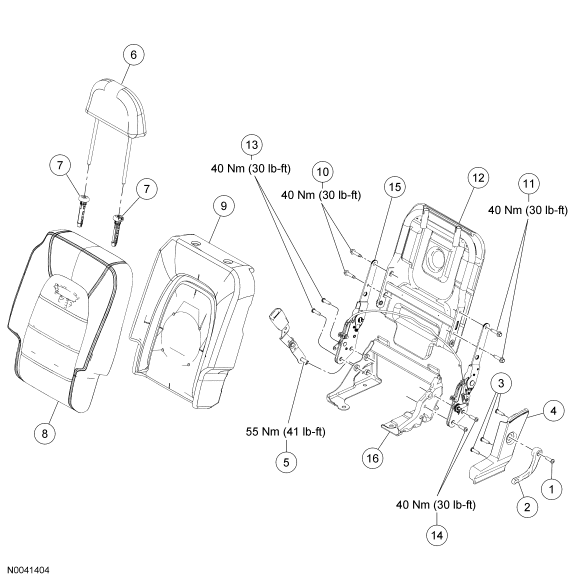

Fig 9: Exploded View Of Second Row Seat, 40 Percent Bench, Backrest With Torque Specifications
GF0026357Courtesy of FORD MOTOR CO.
Item Part Number Description
1 851334 Release handle screw
2 820015 Release handle
3 851334 Latch cover screws (3 required)
4 820009 Latch cover
5 611C73 Safety belt buckle and bolt
6 611A08 Head restraint
7 610A16 Head restraint sleeves (2 required)
8 66601 Backrest trim cover
9 66801 Backrest foam pad
10 W505237-S Upper latch bolts (2 required)
11 W505237-S Upper latch bolts (2 required)
12 613A39 Backrest frame
13 W505237-S Lower latch bolts (2 required)
14 W505237-S Lower latch bolts (2 required)
15 61383 Latch assembly
16 600A87 Riser frame

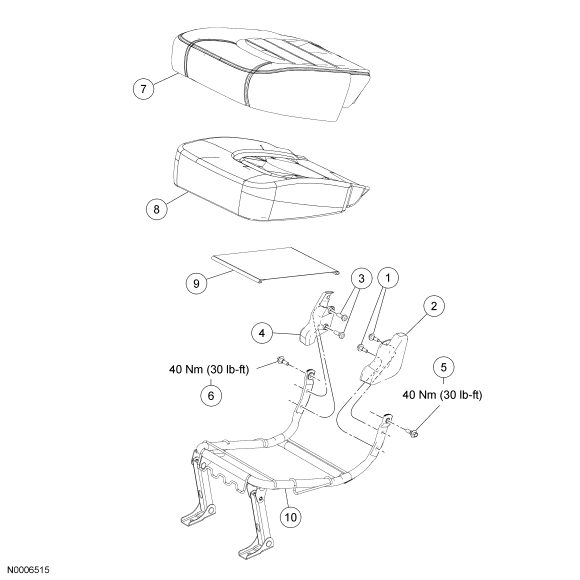

Fig 10: Exploded View Of Second Row Seat, 40 Percent Bench, Cushion With Torque Specifications
GF0026358Courtesy of FORD MOTOR CO.
Item Part Number Description
1 854182 Latch cover screws (2 required)
2 820011 Latch cover
3 854182 Latch cover screws (2 required)
4 851264 Latch cover
5 - Upper pivot latch bolt (part of 605C10)
6 - Upper pivot latch bolt (part of 605C10)
7 63805 Cushion trim cover
8 63841 Cushion foam pad
9 63844 Cushion pad support
10 631B79 Seat cushion frame
  1. For additional information, refer to the appropriate procedures.
