Roof Opening Panel Switch Connector

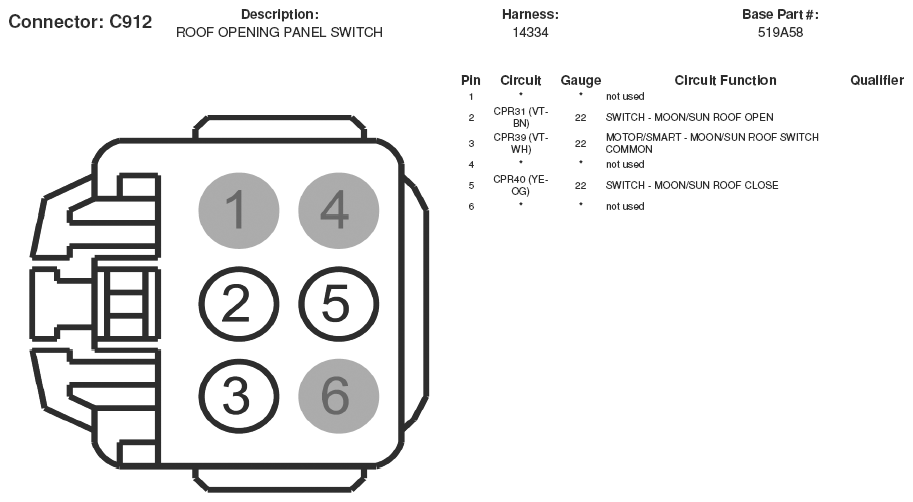

Fig 1: Roof Opening Panel Switch Connector End View (C912)
G05166851Courtesy of FORD MOTOR CO.

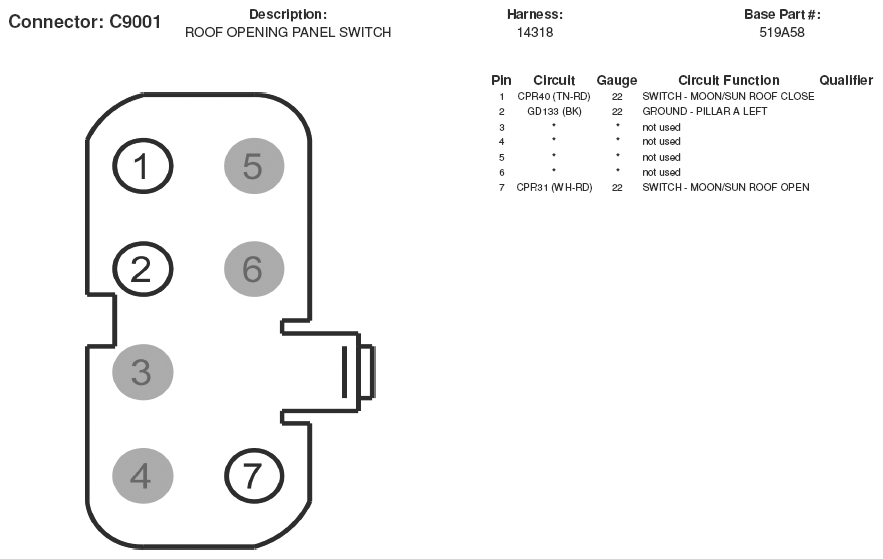

Fig 2: Roof Opening Panel Switch Connector End View (C9001)
G05166979Courtesy of FORD MOTOR CO.
