Power Steering Pressure Switch Connector

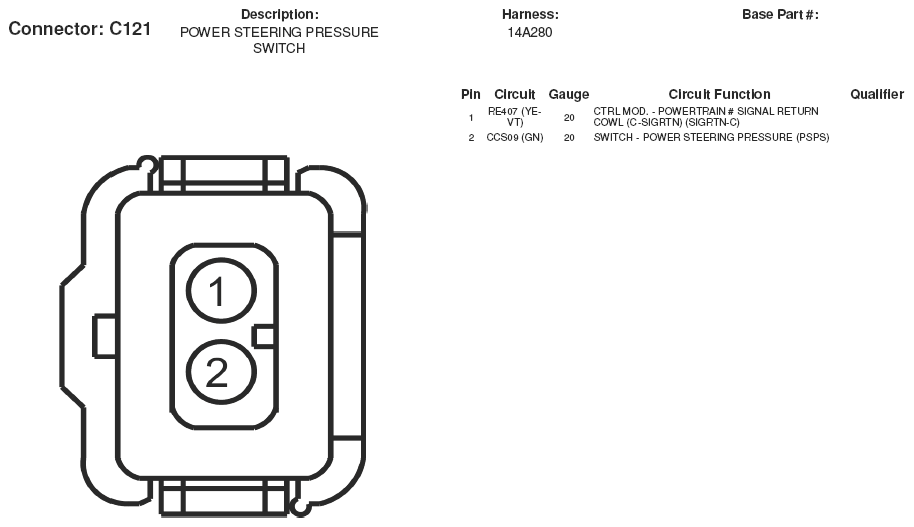

Fig 1: Power Steering Pressure Switch Connector End View (C121)

G05166643

Courtesy of FORD MOTOR CO.
