Driver Can Vent Unit Connector

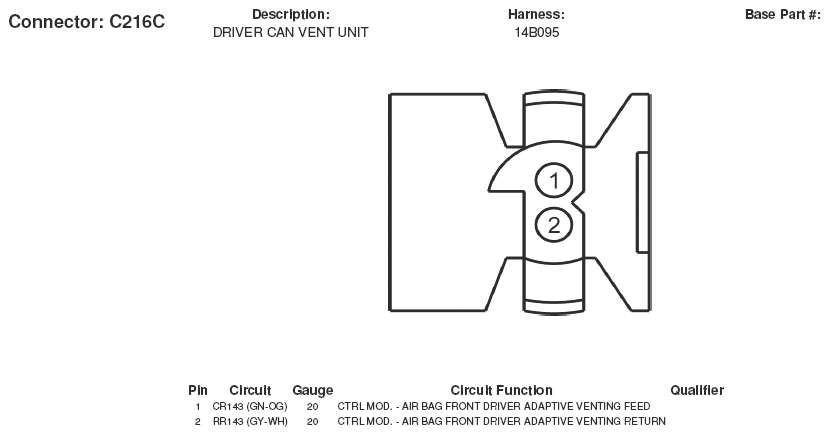

Fig 1: Driver Can Vent Unit Connector End View (C216C)

G05166705

Courtesy of FORD MOTOR CO.
