Occupant Classification Sensor Module Connector

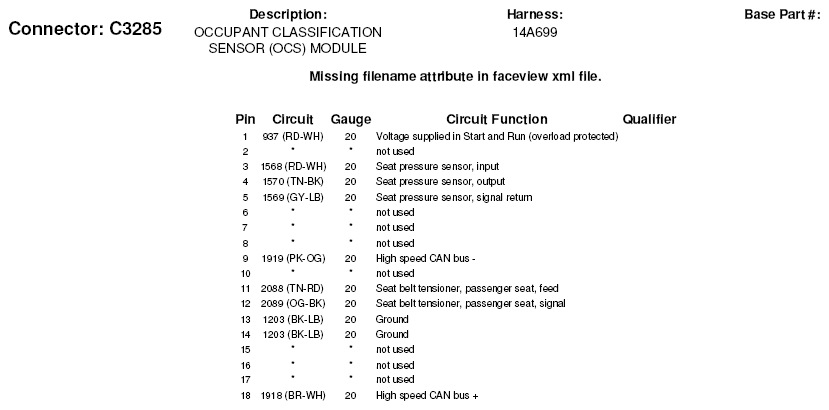

Fig 1: Occupant Classification Sensor Module Connector End View (C3285)

G05178551

Courtesy of FORD MOTOR CO.
