Trailer Tow Connector

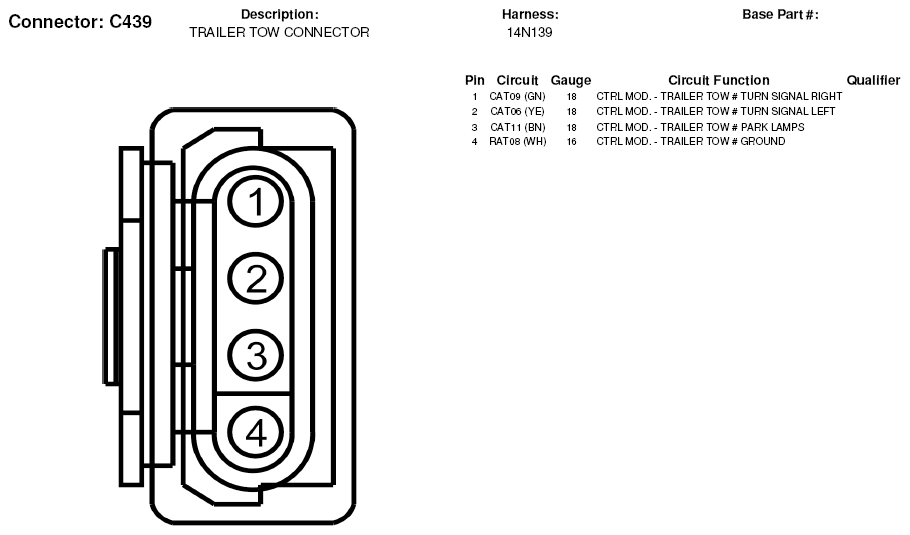

Fig 1: Trailer Tow Connector Connector End View (C439)

G05182627

Courtesy of FORD MOTOR CO.
