Lumbar Motor Connector

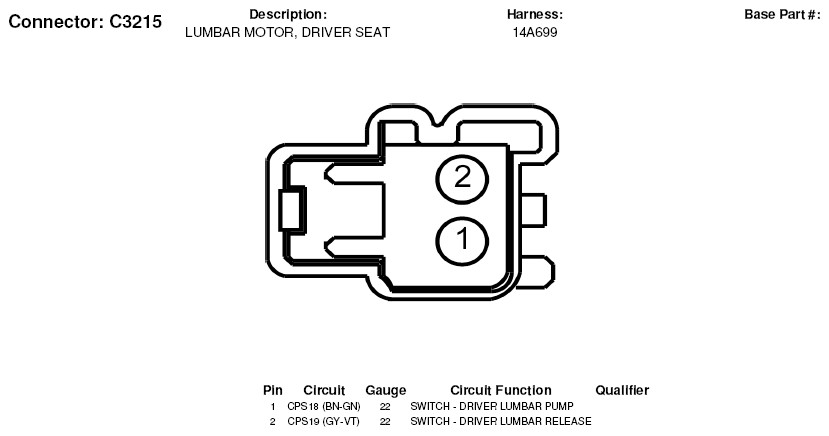

Fig 1: Lumbar Motor Connector End View (C3215)

G05182774

Courtesy of FORD MOTOR CO.

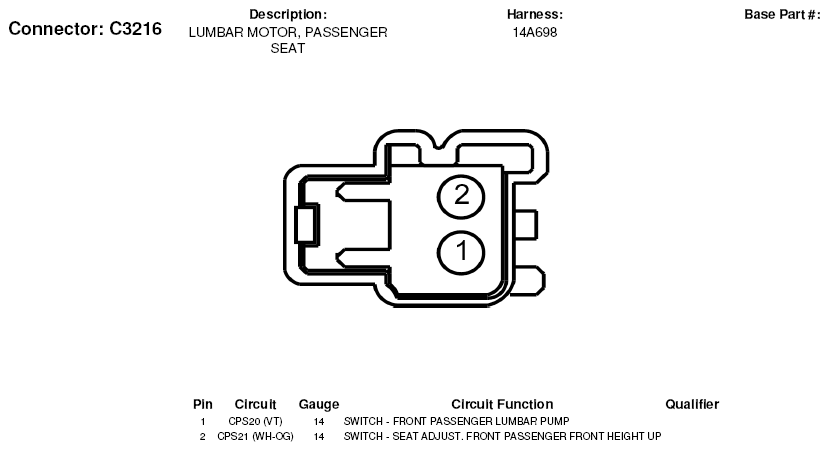

Fig 2: Lumbar Motor Connector End View (C3216)

G05182775

Courtesy of FORD MOTOR CO.
