Liftgate Switch / Decklid Switch Connector

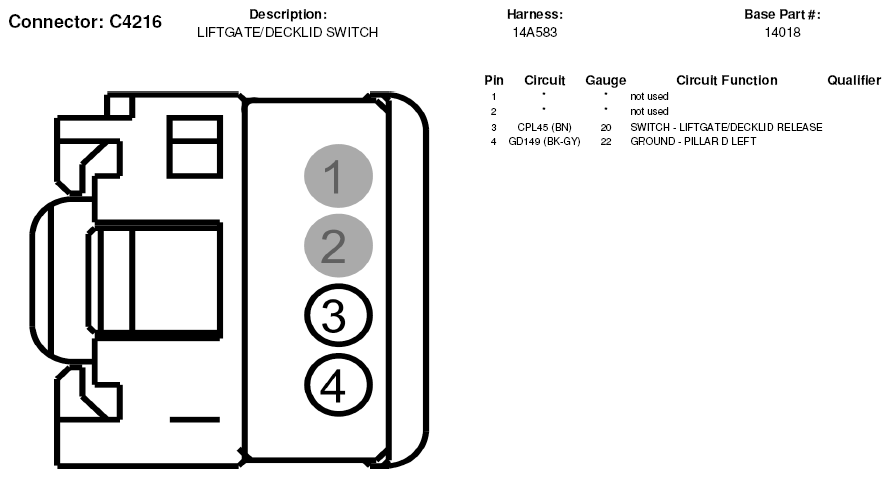

Fig 1: Liftgate Switch / Decklid Switch Connector End View (C4216)

G05182818

Courtesy of FORD MOTOR CO.
