Liftgate Cinching Motor Connector

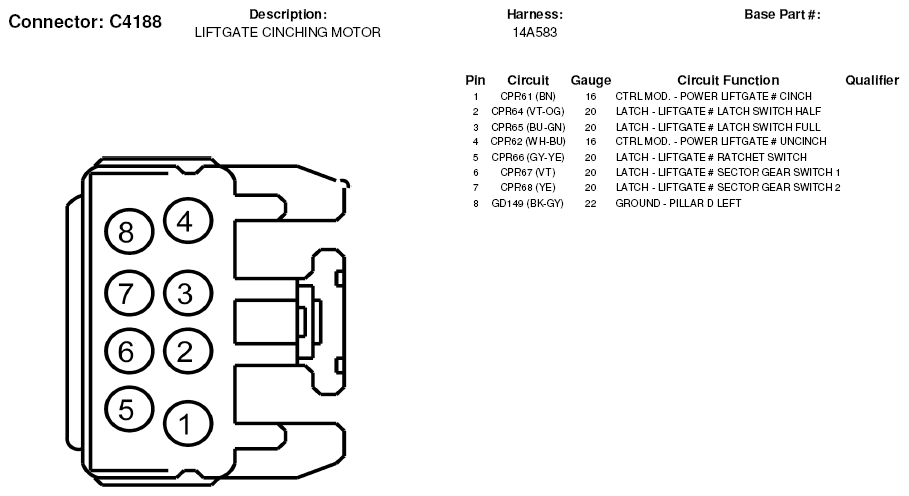

Fig 1: Liftgate Cinching Motor Connector End View (C4188)

G05182815

Courtesy of FORD MOTOR CO.
