Inertia Fuel Shutoff Switch Connector

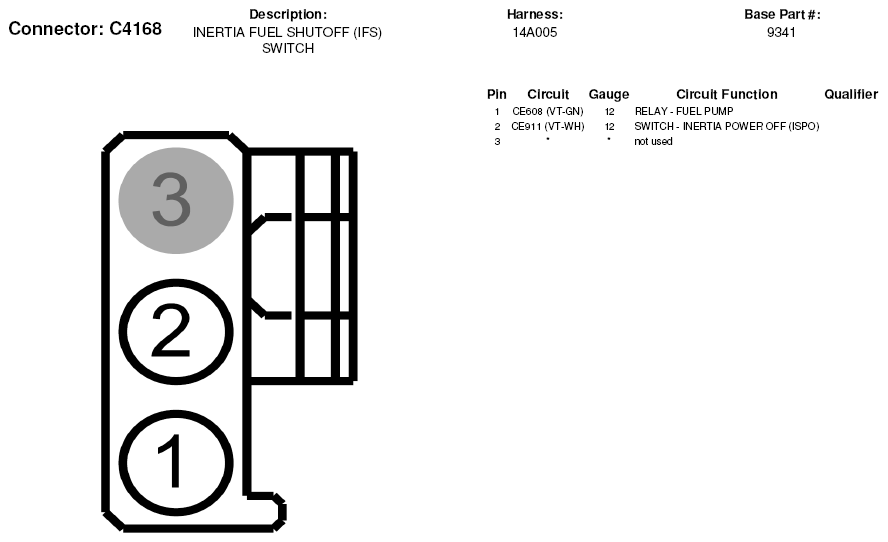

Fig 1: Inertia Fuel Shutoff Switch Connector End View (C4168)

G05182809

Courtesy of FORD MOTOR CO.
