High Mounted Stoplamp Connector

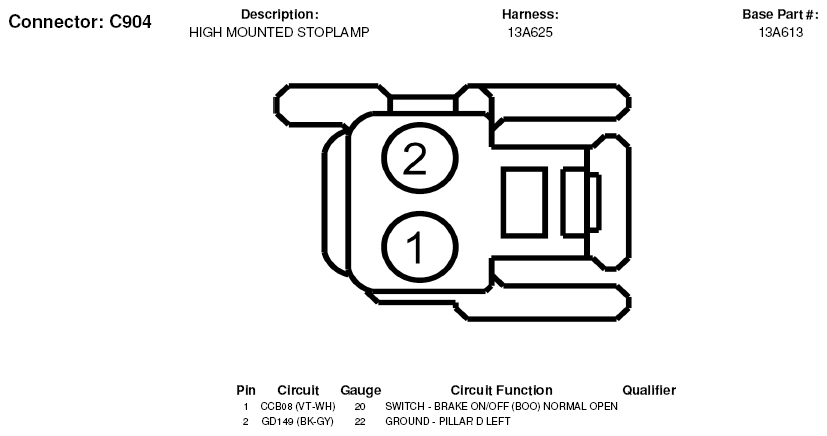

Fig 1: High Mounted Stoplamp Connector End View (C904)

G05182679

Courtesy of FORD MOTOR CO.
