Heated Seat Element Connector

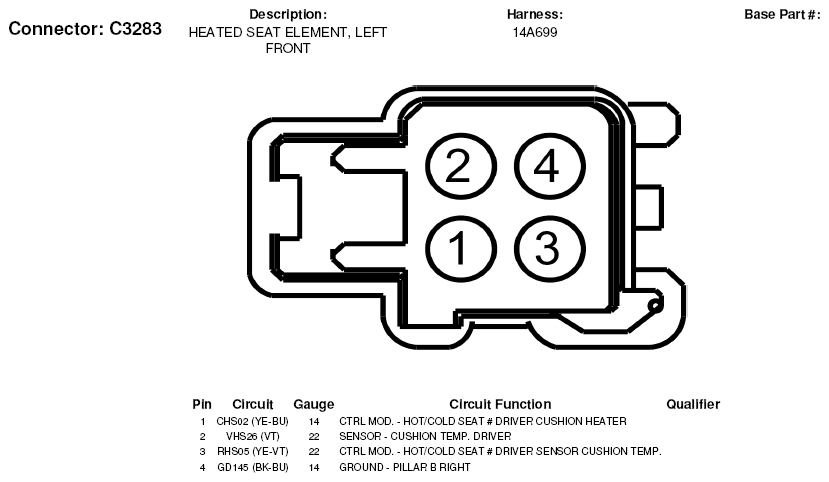

Fig 1: Heated Seat Element Connector End View (C3283)

G05182780

Courtesy of FORD MOTOR CO.

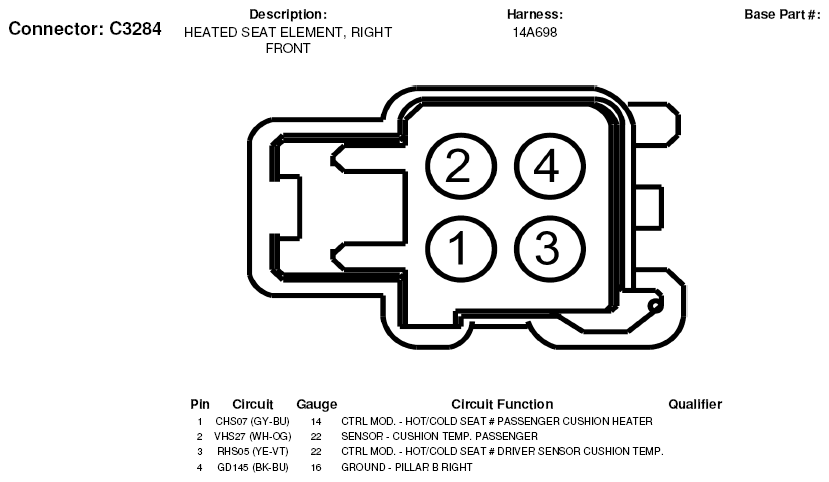

Fig 2: Heated Seat Element Connector End View (C3284)

G05182781

Courtesy of FORD MOTOR CO.
