EVAP Canister Vent Control Connector

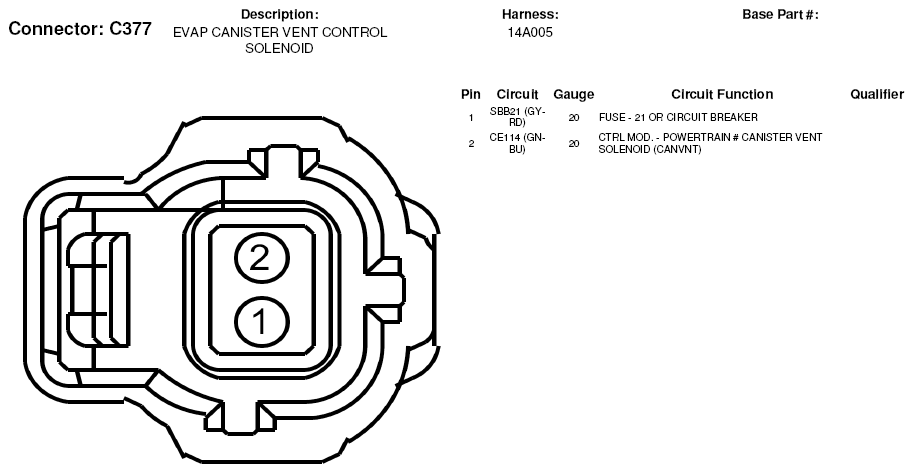

Fig 1: EVAP Canister Vent Control Connector End View (C377)

G05182616

Courtesy of FORD MOTOR CO.
