Dual Climate Controlled Seat Connector

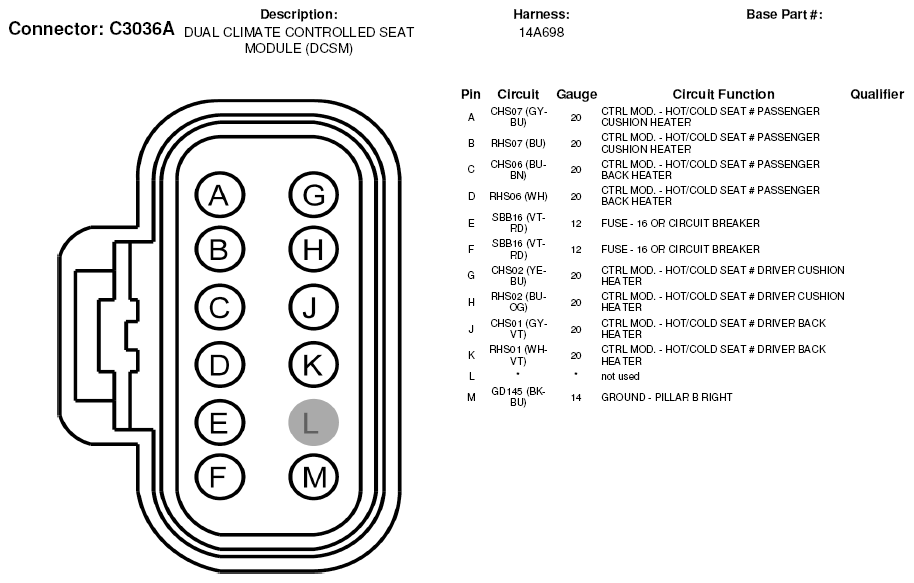

Fig 1: Dual Climate Controlled Seat Connector End View (C3036A)
G05182756Courtesy of FORD MOTOR CO.

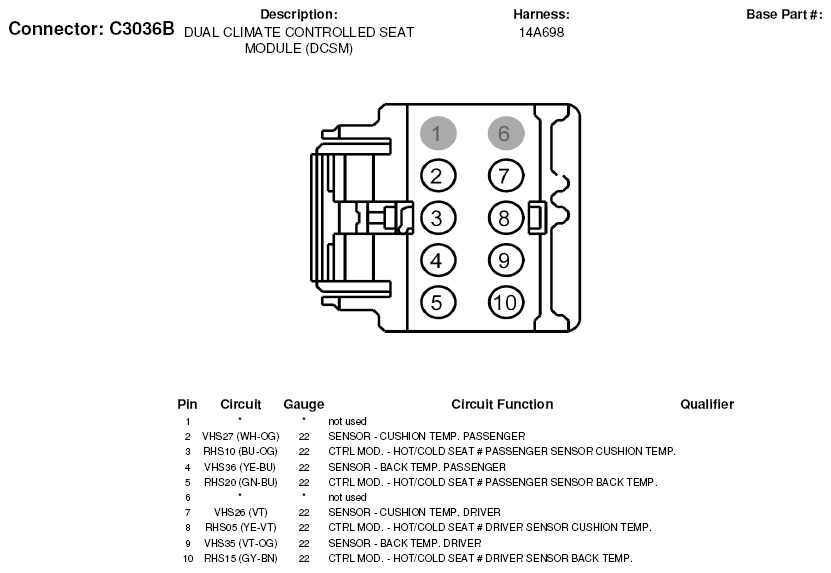

Fig 2: Dual Climate Controlled Seat Connector End View (C3036B)
G05182757Courtesy of FORD MOTOR CO.

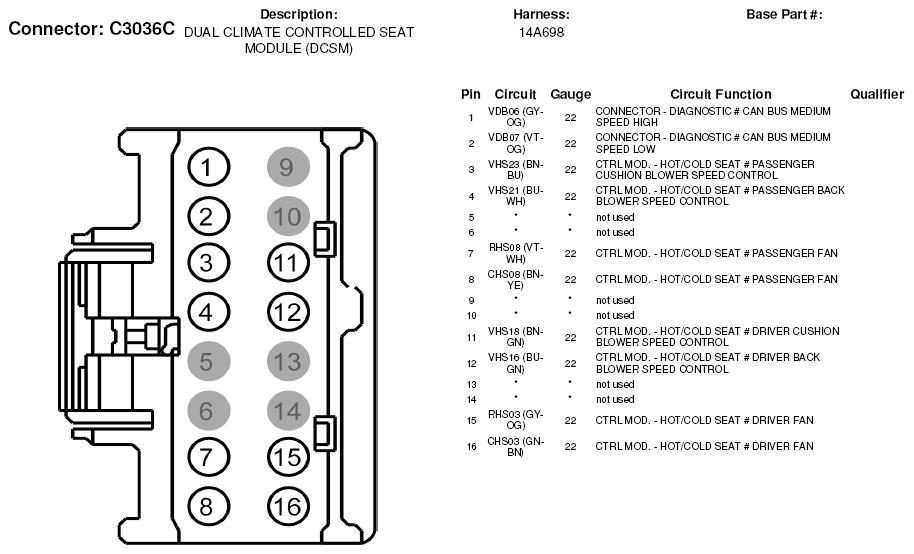

Fig 3: Dual Climate Controlled Seat Connector End View (C3036C)
G05182758Courtesy of FORD MOTOR CO.
