Driver Seat Front Height Connector

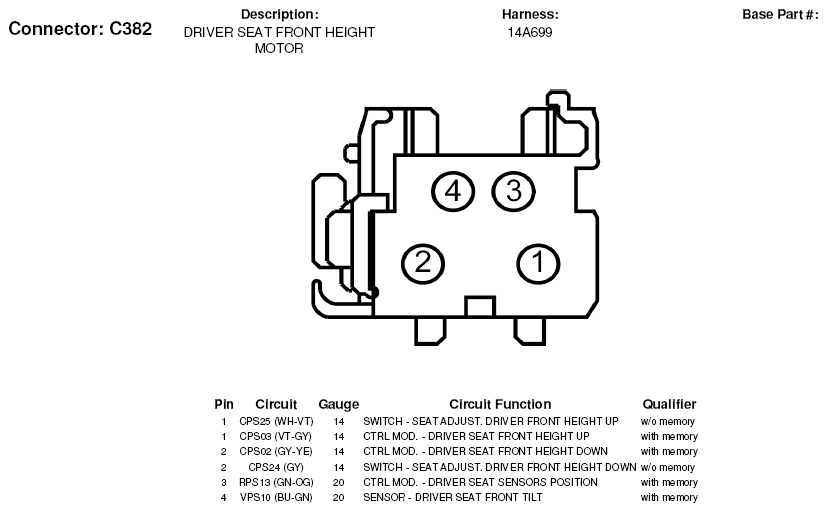

Fig 1: Driver Seat Front Height Connector End View (C382)

G05182617

Courtesy of FORD MOTOR CO.
