Driver Seat Backrest Motor Connector

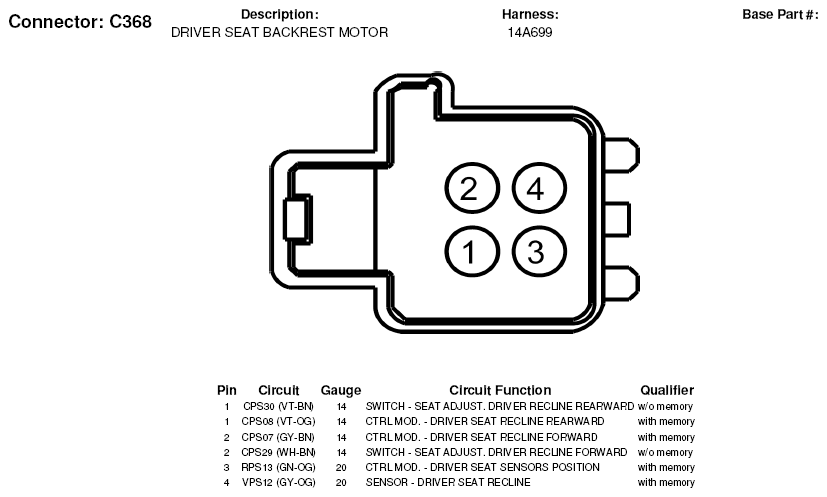

Fig 1: Driver Seat Backrest Motor Connector End View (C368)

G05182615

Courtesy of FORD MOTOR CO.
