Steering Column Shaft: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

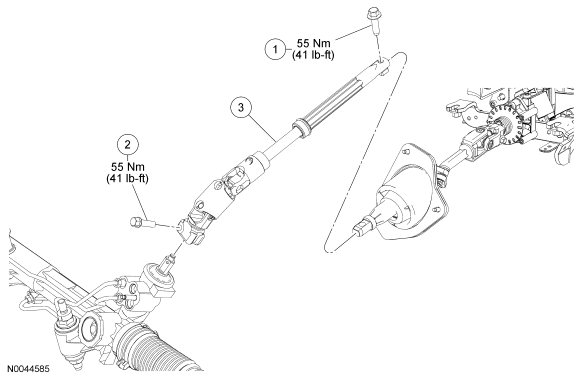

Fig 1: Steering Column Shaft - Upper Intermediate Shaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808684	Upper steering column shaft-to-steering column bolt
2	N801614	Lower steering column shaft-to-upper steering column shaft bolt
3	3E751	Upper steering column shaft

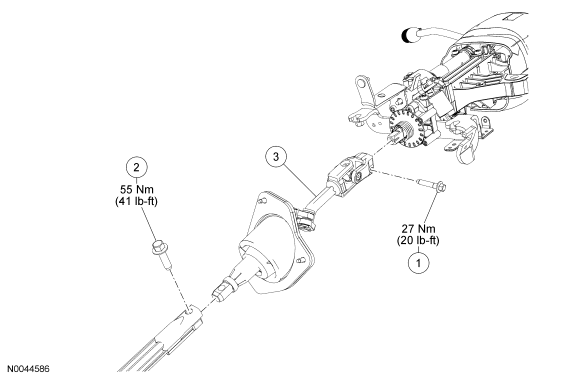

Fig 2: Steering Column Shaft - Lower Intermediate Shaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N801614	Lower steering column shaft-to-steering gear bolt
2	N803942	Lower steering column shaft-to-steering gear bolt
3	3C662	Lower steering column shaft
