Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the 2 screws and position the fender splash shield aside.

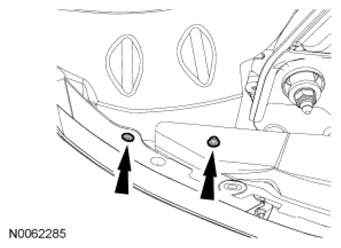

    Fig 1: Locating Fender Splash Shield And Screws
    G06503850Courtesy of FORD MOTOR CO.
  3. Remove the 3 screws and the HCM  .
    • Disconnect the electrical connector.
  4. To install, reverse the removal procedure.
