Antenna Cable - AM/FM: Notes

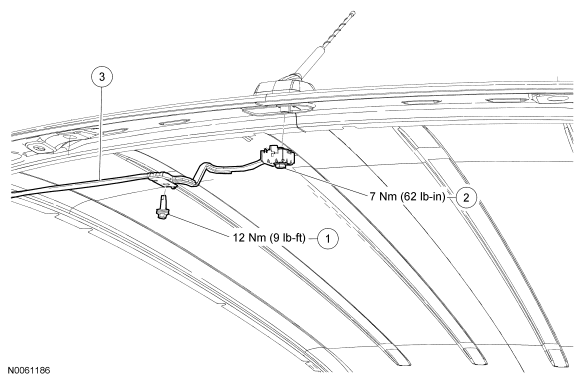

Fig 1: Exploded View Of AM/FM Antenna Cable-To-Antenna With Torque Specification
GF0032249Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - AM/FM antenna cable bolt
2 - AM/FM antenna base bolt (part of 18812)
3 18812 Upper AM/FM antenna cable

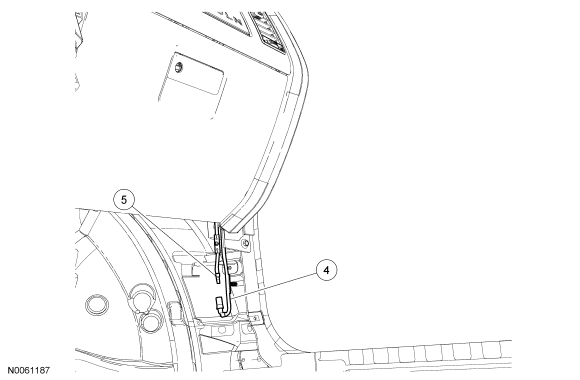

Fig 2: Exploded View Of Upper Antenna Cable-To-Lower Antenna Cable
GF0032250Courtesy of FORD MOTOR CO.
Item Part Number Description
4 18812 Upper AM/FM antenna cable
5 18812 Lower AM/FM antenna cable
