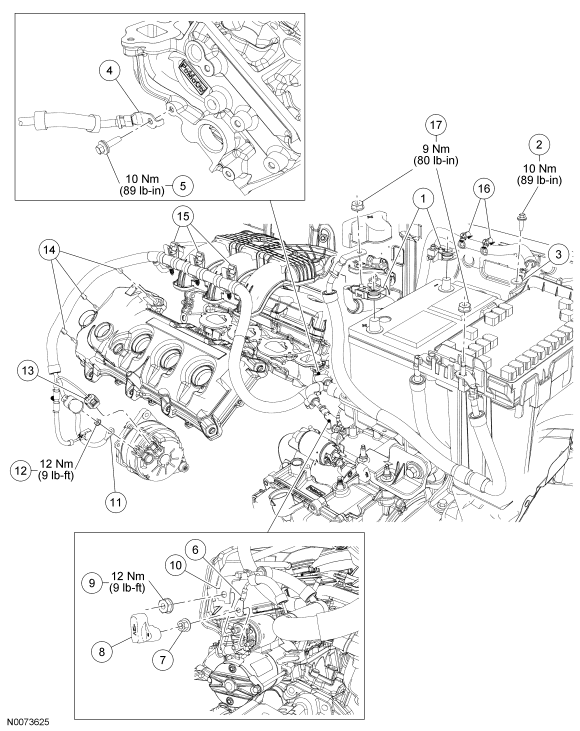

| 1 |
14B060 |
Battery cables |
| 2 |
W705661 |
Battery cable body ground terminal bolt |
| 3 |
- |
Battery cable body ground terminal |
| 4 |
- |
Battery cable engine ground terminal |
| 5 |
W705661 |
Battery cable engine ground terminal bolt |
| 6 |
- |
Battery cable starter solenoid terminal (part of 14B060) |
| 7 |
W705790-S |
Battery cable starter solenoid terminal nut |
| 8 |
11N087 |
Starter solenoid terminal cover |
| 9 |
W706414-S |
Battery cable starter motor terminal nut |
| 10 |
- |
Battery cable starter motor terminal (part of 4B060) |
| 11 |
- |
Generator B+ cable terminal |
| 12 |
W711953 |
Generator B+ terminal nut |
| 13 |
- |
Generator regulator connector |
| 14 |
14A163 |
Battery cable locators (3 required) (part of 14B060) |
| 15 |
- |
Battery cable harness locators (part of 14B060) |
| 16 |
W701596-S |
Battery cable locators (2 required) |
| 17 |
W705790 |
Battery junction box (BJB) cable terminal nuts |
