Seat Heater Element Connector

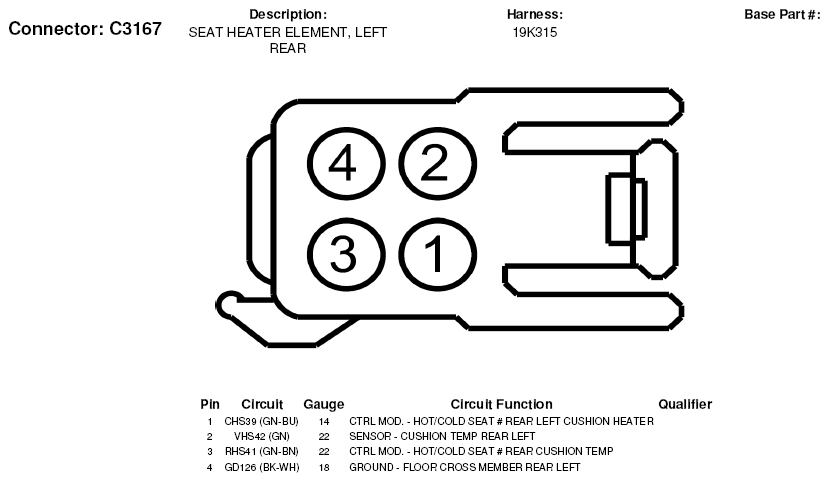

Fig 1: Seat Heater Element Connector End View (C3167)

G05182768

Courtesy of FORD MOTOR CO.

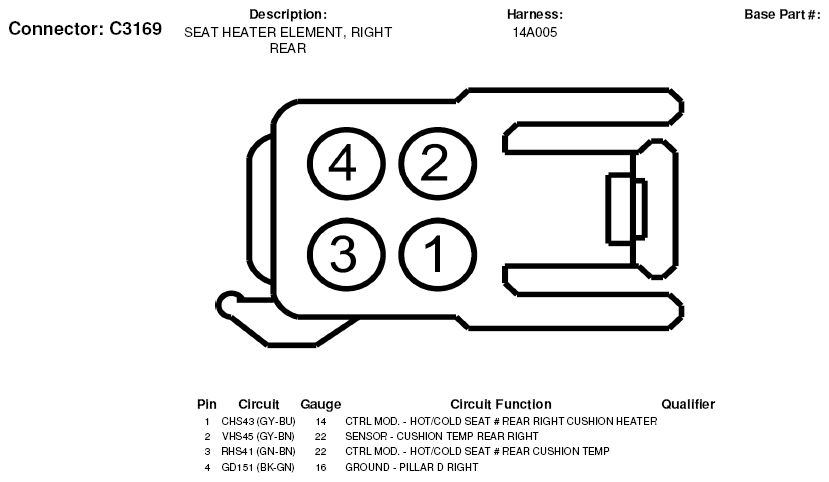

Fig 2: Seat Heater Element Connector End View (C3169)

G05182769

Courtesy of FORD MOTOR CO.
