Safety Belt Buckle Switch Connector

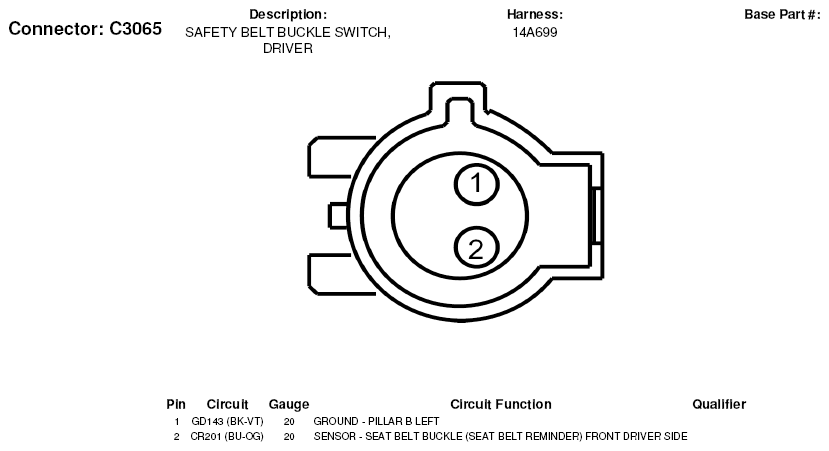

Fig 1: Safety Belt Buckle Switch Connector End View (C3065)
G05182762Courtesy of FORD MOTOR CO.

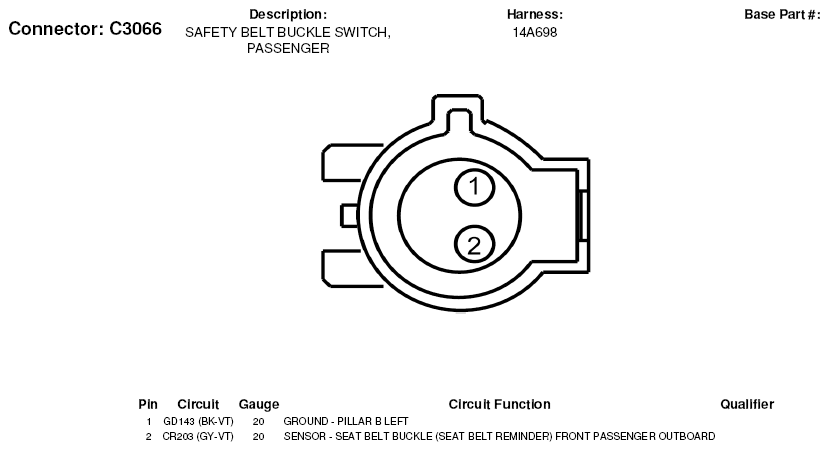

Fig 2: Safety Belt Buckle Switch Connector End View (C3066)
G05182763Courtesy of FORD MOTOR CO.
