Regional Program 14R02

SUBJECT

Regional Program 14R02 - Supplement #1

Certain 2007-2008 Model Year Edge and MKX Vehicles Not Covered Under Safety Recall 14S22

Fuel Tank Corrosion Inspection and Repair

REF

Safety Recall 14S22 - Supplement #2

Dated September 21, 2015

REASON FOR THIS SUPPLEMENT

Owner mailing: Owner Letters will be mailed the week of June 6, 2016. Additionally, the deadline for customer refunds has been extended to October 7, 2016.
Field data gathering: Sufficient field data has been collected. Images of corroded fuel tanks no longer need to be submitted for review. Additionally, repairs dated May 5, 2016, and later that include labor operation 14R02D for SSSC Image Submission will not be accepted.
Rental vehicles: Dealers are now pre-approved for up to five days of vehicle rental.

AFFECTED VEHICLES

(Not registered in corrosion states covered under Safety Recall 14S22 )

AFFECTED VEHICLES

Vehicle	Model Year	Assembly Plant	Build Dates
Edge	2007-2008	Oakville	June 15, 2006 through September 22, 2008
MKX	2007-2008	Oakville	June 20, 2006 through September 22, 2008

Affected vehicles are identified in OASIS and FSA VIN Lists.

REASON FOR THIS PROGRAM

In some of the affected vehicles that are operated in high-corrosion environments associated with road salt use, moisture and salt may become trapped under the fuel tank mounting reinforcement brackets at the four corners where the fuel tank is attached to the vehicle. Over time, corrosion under these reinforcement brackets can spread to the fuel tank which can result in a fuel leak. A fuel leak in the presence of an ignition source may result in a fire.

Owners that operate their vehicle in a corrosive environment (e.g., where road salt is used in winter months) or have concerns about their fuel tank are eligible for a repair under this Regional Program.

SERVICE ACTION

Upon customer request, dealers are to remove and inspect the fuel tank for corrosion. Based on the results of the inspection, dealers will either clean and treat or replace the fuel tank . This service must be performed at no charge to the vehicle owner.

OWNER NOTIFICATION MAILING SCHEDULE

Owner Letters are expected to be mailed the week of June 6, 2016 . Owners will be instructed to schedule a service appointment without delay if their vehicle exhibits symptoms associated with a fuel tank leak. If not evident, owners may still request the remedy if they operate their vehicle in corrosive environments associated with road salt use or have concerns with the fuel tank on their vehicle.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Ordering Information
Attachment III: Technical Information

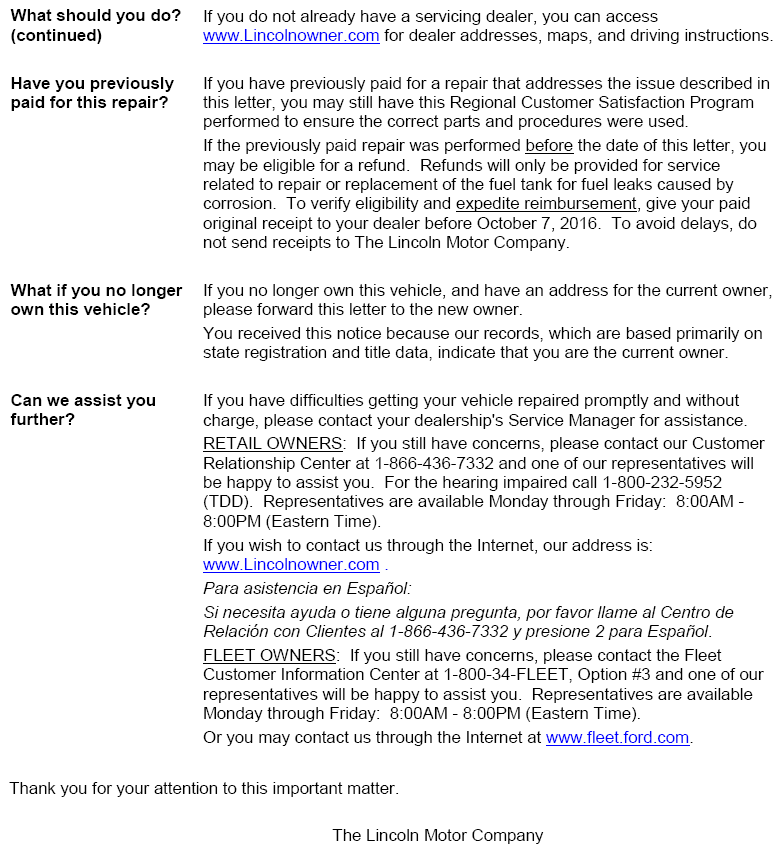

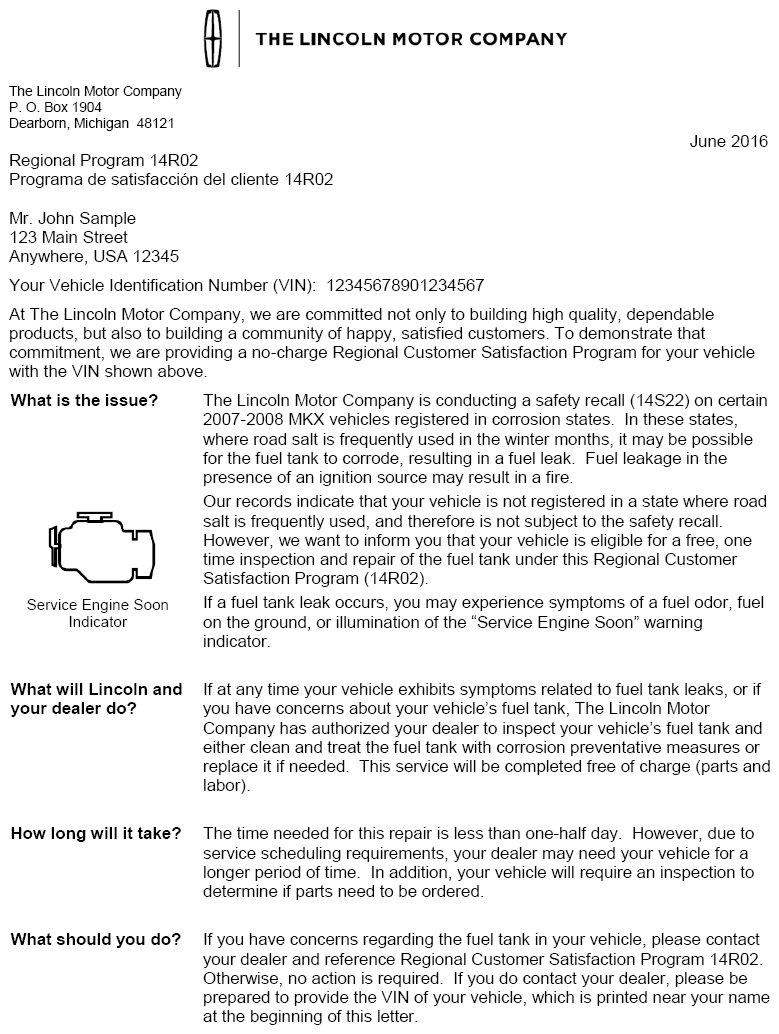

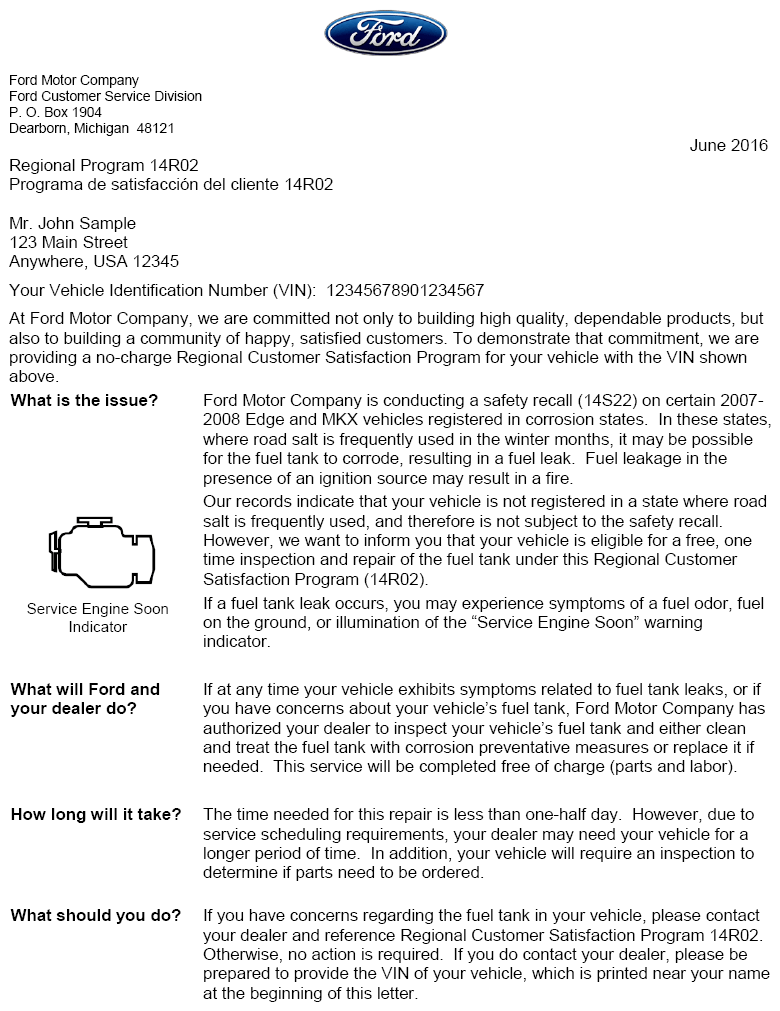

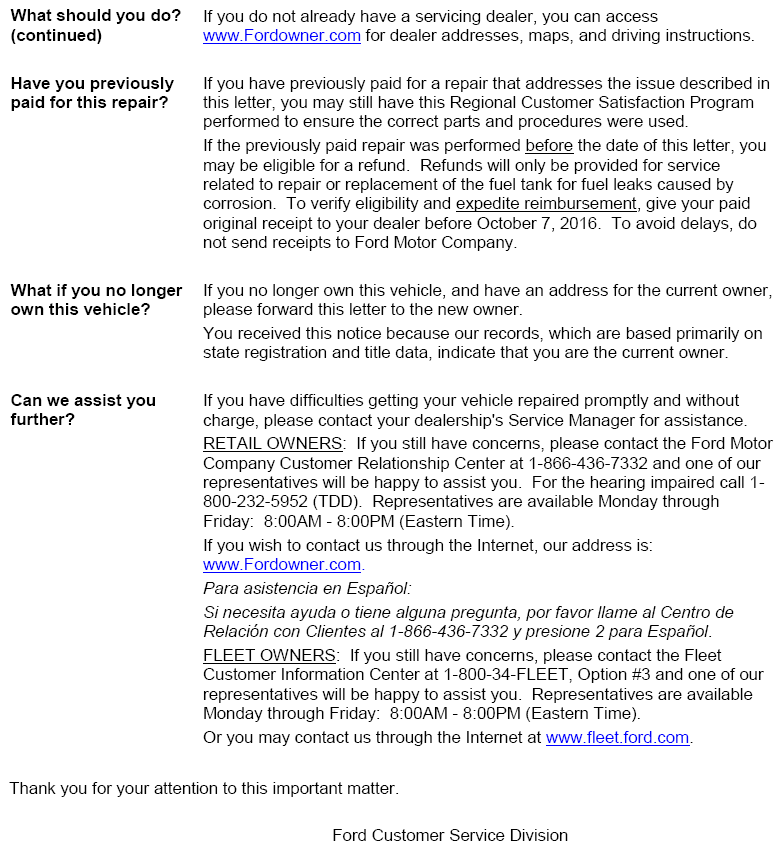

Owner Notification Letters

QUESTIONS & ASSISTANCE

For questions and assistance, contact the Special Service Support Center (SSSC) via the SSSC Web Contact Site. The SSSC Web Contact Site can be accessed through the Professional Technician Society (PTS) website using the SSSC link listed at the bottom of the OASIS VIN report screen or listed under the SSSC tab.

OASIS ACTIVATION

OASIS will be activated on December 15, 2015

FSA VIN LISTS ACTIVATION

FSA VIN Lists will not be activated for this service action.

STOCK VEHICLES

Use OASIS to identify any affected vehicles in your used vehicle inventory.

SOLD VEHICLES

Owners of affected vehicles will be directed to contact their dealer for repairs if their vehicle exhibits symptoms associated with fuel tank leaks, if they operate their vehicle in corrosive environments associated with road salt use, or if they have concerns with the fuel tank on their vehicle.

TITLE BRANDED / SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

ADDITIONAL LABOR TIME AND/OR PARTS

Submit a request to the SSSC Web Contact Site prior to the repair if you have any of the following:

Damage that you believe was caused by the covered condition.
A condition that requires additional labor and/or parts to complete the repair.
Aftermarket equipment or non-Ford modifications to the vehicle which might prevent the repair of the covered condition.

Requests for approval after completion of the repair may not be granted. Ford Motor Company reserves the right to deny coverage for related damage in cases where the vehicle owner has not had this repair performed on a timely basis. Additional related damage parts are subject to random selection for return to the Ford Warranty Parts Analysis Center (WPAC).

OWNER REFUNDS

Ford Motor Company is offering a refund for owner-paid repairs covered by this program if the repair was performed before the date of the Owner Notification Letter. This refund offer expires October 7, 2016 .
Dealers are also pre-approved to refund owner-paid emergency repairs that were performed away from an authorized servicing dealer after the date of the Owner Notification Letter. There is no expiration date for emergency repair refunds. Non-covered repairs, or those judged by Ford to be excessive, will not be reimbursed.
Refunds will only be provided for the cost associated with repair or replacement of the fuel tank due to a leak caused by corrosion.

RENTAL VEHICLES

If a customer's vehicle requires replacement of the fuel tank and it is necessary to order parts, dealers are authorized to provide the customers up to five days of vehicle rental. The daily rate can include applicable taxes but must not exceed $55.00. Rentals will only be reimbursed for the day(s) the vehicle is at the dealership for part replacement. Prior approval for more than five rental days is required from the SSSC via the SSSC Web Contact Site.

CLAIMS PREPARATION AND SUBMISSION

Enter claims using Direct Warranty Entry (DWE) or One Warranty Solution (OWS).
- DWE: refer to ACESII manual for claims preparation and submission information.
- OWS: when entering claims in DMS software, select claim type 31: Field Service Action. The FSA number (14R02) is the sub code.
Additional labor and/or parts must be claimed as related damage on a separate repair line from which the FSA is claimed. Additional labor and/or parts require prior approval from the SSSC via the SSSC Web Contact Site.
Submit refunds on a separate repair line.
- - Program Code: 14R02
- - Misc. Expense: REFUND
- - Misc. Expense: ADMIN
- - Misc. Expense: 0.2 Hrs.
Multiple refunds should be submitted on one repair line and the invoice details for each repair should be detailed in the comments section of the claim.
Claim up to $55.00 per day for customer rental vehicles. Enter the total amount of the rental expense under Miscellaneous Expense code "Rental".
Provision for Locally Obtained Supplies: Valugard VG-101A rust inhibitor aerosol or Daubert NOX RUST® 7703-W aerosol. Submit on the same line as the repair.
- Program Code: 14R02
- Misc. Expense: OTHER
- Misc. Expense: Claim up to $8.00

LABOR ALLOWANCES

Description	Vehicle Type	Labor Operation	Labor Time
Remove, Clean, and Treat Fuel Tank Includes inspection (pass).	FWD vehicles	14R02B	1.7 Hours
Remove, Clean, and Treat Fuel Tank Includes inspection (pass).	AWD vehicles	14R02B	2.0 Hours
Remove and Replace Fuel Tank Includes inspection (fail) and transfer of parts.	FWD vehicles	14R02C	1.6 Hours
Remove and Replace Fuel Tank Includes inspection (fail) and transfer of parts.	AWD vehicles	14R02C	2.0 Hours

PARTS REQUIREMENTS / ORDERING INFORMATION

PARTS INFORMATION

Part Number	Part Name	Order Quantity
FWD vehicles
AT4Z-9002-DCP	Fuel tank assembly (replace only if inspection failed )	1
4L3Z-9276-AA	Fuel pump o-ring (replace only if inspection failed )	1
W713928-S438	Fuel tank bolts (4/package, 4 needed)	1
W506023-S439	Fuel tank to bracket bolts (4/package, 4 needed)	1
AWD vehicles
AT4Z-9002-CCP	Fuel tank assembly (replace only if inspection failed )	1
4L3Z-9276-AA	Fuel pump o-ring (replace only if inspection failed )	1
W713928-S438	Fuel tank bolts (4/package, 4 needed)	1
W506023-S439	Fuel tank to bracket bolts (4/package, 4 needed)	1
W711918-S439	Rear driveshaft flange bolts (4/package, 4 needed)	1
W520113-S440	Driveshaft center support bearing nuts (4/package, 4 needed)	1
Additional materials for fuel tank anti-corrosion treatment
VG-101A - or - 7703-W	Valugard rust inhibitor aerosol (obtain from www.valugard.net )	Claim anti-corrosion treatment as MISC OTHER
VG-101A - or - 7703-W	Daubert NOX RUST® aerosol (obtain from www.daubertchemical.com )	Claim anti-corrosion treatment as MISC OTHER
PM-4-A / PM-4-B (or equivalent)	Motorcraft metal brake parts cleaner	1

The DOR/COR number for this program is 51016.

Order your parts requirements through normal order processing channels.

DEALER PRICE

For latest prices, refer to DOES II.

PARTS RETENTION AND RETURN

Follow the provisions of the Warranty and Policy Manual, Section 1 "WARRANTY PARTS RETENTION AND RETURN POLICIES."

EXCESS STOCK RETURN

Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000.

OVERVIEW

In some of the affected vehicles that are operated in high-corrosion environments associated with road salt use, moisture and salt may become trapped under the fuel tank mounting reinforcement brackets at the four corners where the fuel tank is attached to the vehicle. Over time, corrosion under these reinforcement brackets can spread to the fuel tank which can result in a fuel leak. A fuel leak in the presence of an ignition source may result in a fire.

SERVICE PROCEDURE

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

WARNING: Remove the fuel filler cap slowly. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out. Failure to follow these instructions may result in serious personal injury.

WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

Fuel Tank Removal Procedure

All Vehicles

Position vehicle on a hoist. Please follow Workshop Manual (WSM) procedures in Section 100-02.
Check fuel level indication on instrument cluster and drain fuel if needed.
- If less than 1/2 tank, it is not necessary to drain fuel. Continue to Step 3.
- If more than 1/2 tank, drain fuel to attain less than 1/2 tank as follows:
  1. Remove fuel tank filler cap and position it aside.
  2. Insert a suitable fuel drain tube into the fuel tank filler pipe until it enters the fuel tank.
  3. Attach a fuel storage tanker to the drain tube and drain fuel to bring fuel level below 1/2 tank.
Release the fuel system pressure. Please follow WSM procedures in Section 310-00.
Disconnect the battery ground cable. Please follow WSM procedures in Section 414-01.

Lower or remove the muffler and tailpipe as follows:

NOTE: Do not damage or tear the isolators during removal. Do not use oil or grease-based lubricants on the isolators. They may cause deterioration of the rubber. Use soapy water as needed to separate the isolators from the vehicle.

Front Wheel Drive (FWD) Vehicles

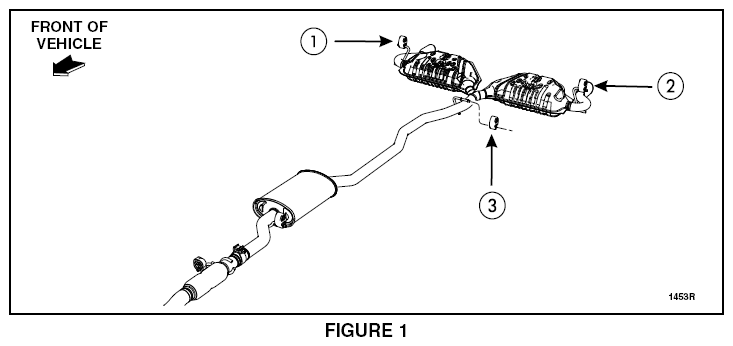

Detach the three (3) muffler and tailpipe assembly rear isolators. See Figure 1.

Position the rear of the exhaust system down approximately 305 mm (12 in) and support using a jack stand.

All Wheel Drive (AWD) Vehicles

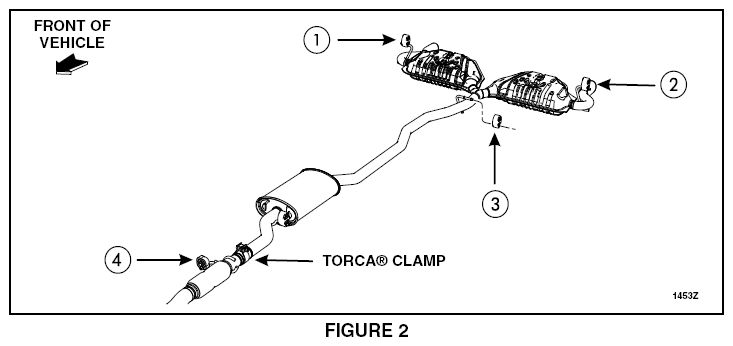

Detach the four (4) muffler and tailpipe assembly isolators. See Figure 2.
Loosen the Torca® clamp and remove the exhaust system from the vehicle.

NOTE: Install a new Torca® clamp, if necessary, following the procedures in Section 309-00.

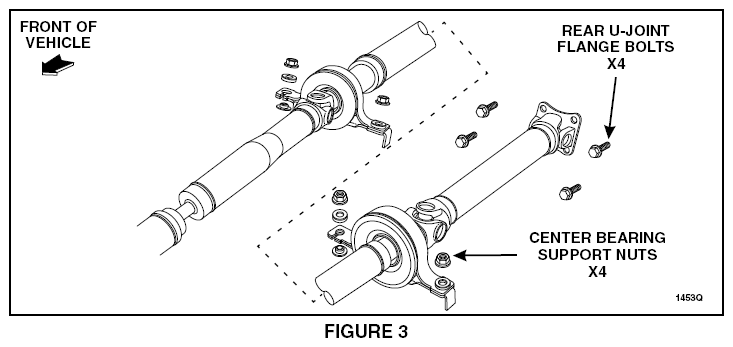

With the help of an assistant, detach and position the rear of the driveshaft aside as follows: See Figure 3.

Remove and discard the four (4) rear u-joint flange bolts at the differential assembly.

Remove and discard the two (2) or four (4) center bearing support nuts. Position and secure the driveshaft up and to the left side of the vehicle.

All Vehicles

Install a suitable lifting device under the fuel tank.
Disconnect the fuel tank wiring harness electrical connector.
Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.
Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Please follow WSM procedures in Section 310-00.
Release the clamp and disconnect the fuel tank filler pipe hose from the fuel tank.
Disconnect the fuel tank jumper tube-to-fuel tube quick connect coupling. Please follow WSM procedures in Section 310-00.
Remove the two (2) parking brake cable bracket bolts and position cables aside.
NOTE: Position the lifting device securely against the fuel tank prior to loosening any fuel tank attaching bolts.
Remove the fuel tank bolts as follows:
1. Remove and discard two (2) bolts attaching the fuel tank to the fuel tank brackets at both the front center and rear center of the tank (four (4) bolts total). Leave the brackets attached to the vehicle. See Figure 4.
2. Remove and discard the four (4) bolts (one at each corner) attaching the fuel tank to the body.
NOTE: Two (2) rear center fuel tank to bracket bolts shown, two (2) front center fuel tank to bracket bolts similar.

NOTE: AWD vehicles require the fuel tank to be positioned forward, past the Rear Differential Unit (RDU), then lowered. FWD vehicles require the fuel tank be partially lowered onto a 102 mm (4 in) by 102 mm (4 in) piece of lumber (or equivalent) placed under the right side of the tank and then lifted and lowered over the exhaust and out the drivers side of the vehicle.

Remove the fuel tank. Continue to Fuel Tank Inspection Procedure below.

NOTE: If you experience difficulty removing fuel tank corner attaching bolts, it may be necessary to safely heat the bolts during removal. If necessary, use the following procedure.

WARNING: Only use Mini-Ductor™ or equivalent heating device if there is no visible fuel leak and no fuel smell that could be the result of a fuel leak. Do not allow the temperature of the bolt to rise above 165°C (330°F).

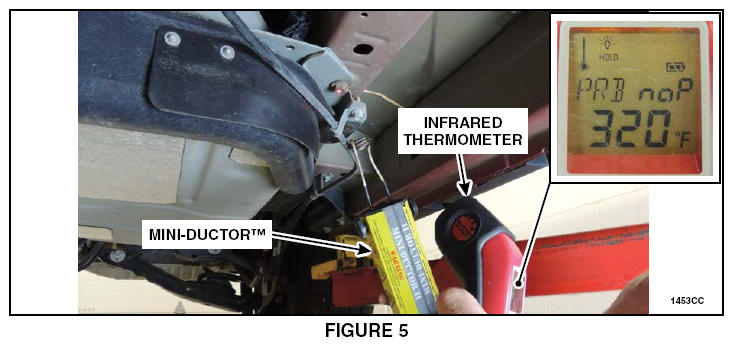

Using a Mini-Ductor™ or equivalent and infrared thermometer, heat the corner attaching bolts one at a time to approximately 160°C (320°F). See Figure 5.

Use an air impact gun to remove each bolt immediately after it is heated.

Fuel Tank Inspection Procedure

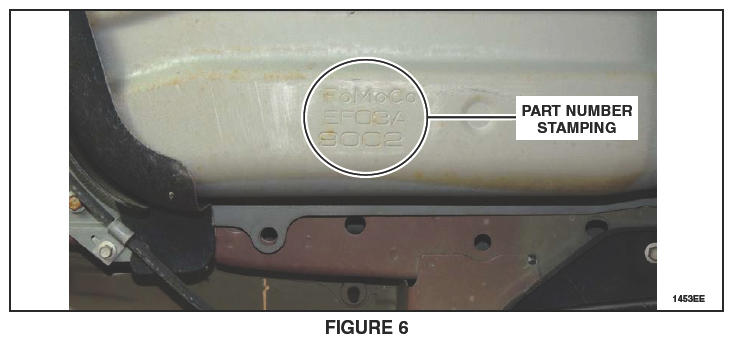

Inspect the bottom side of the fuel tank for a "FoMoCo" part number stamping. See Figure 6.

If the fuel tank has a "FoMoCo" part number stamping, proceed to Step 2.

If the fuel tank does not have a "FoMoCo" part number stamping, replace the fuel tank.

If necessary, use a stiff nylon brush and Motorcraft Metal Brake Parts Cleaner to clean any heavy deposits of dirt/debris from around the top center flange area of the fuel tank so the metal in the corner bracket areas can be inspected for rust/corrosion. See Figure 7.
NOTE: DO NOT use a metal or wire brush or scraper. This will compromise the coatings on the tank.

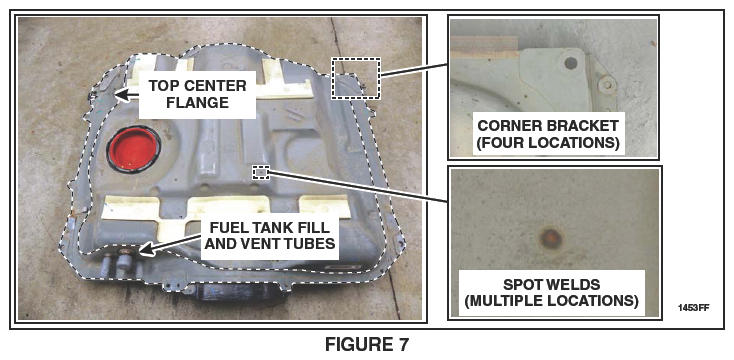

Inspect the fuel tank corner bracket areas, fuel filler and vent tube attachment areas and other areas of the fuel tank for signs of leaks or corrosion. See Figures 7, 8a-8b, and 9a-9b.

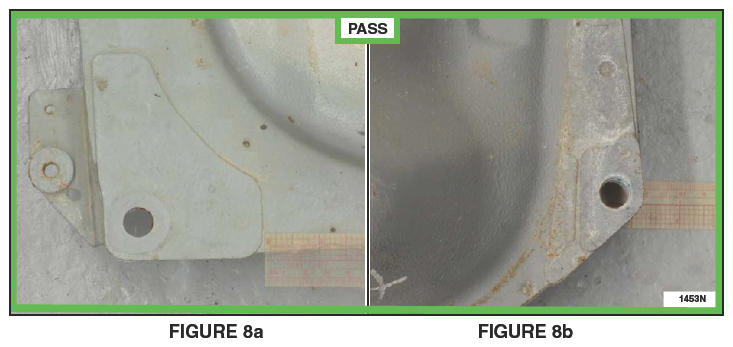

A fuel tank PASSES the inspection procedure if there are no signs of leaks, soft/bubbling paint or corrosion at the edges of the corner brackets, fuel filler and vent tube attachment areas, or other areas of the fuel tank. If the fuel tank passes the inspection, continue to Fuel Tank Corrosion Treatment Procedure on the next page. See Figures 8a and 8b.

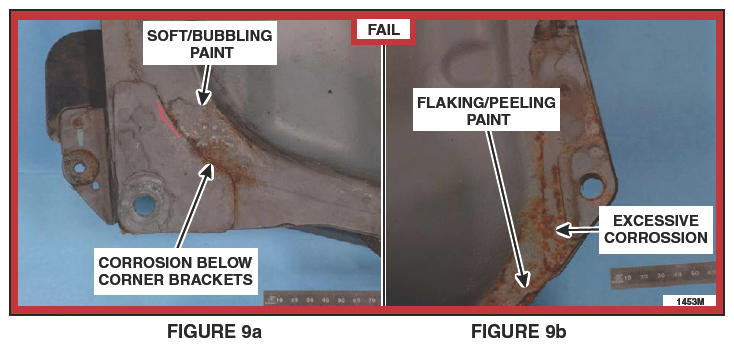

Conditions that indicate a fuel tank FAILS and must be replaced include:
- Any soft or bubbling paint that is easily scraped from the surface of the tank at ANY location.
- Any corrosion stemming from below the corner brackets that has compromised the surface of the metal.
- Excessive corrosion at the weld seam around the top center flange of the tank, at the base of the fuel inlet and vent ports, and on top of the tank at the baffle spot welds.
If the fuel tank fails the inspection, replace the tank and proceed to Fuel Tank Installation Procedure below. See Figures 9a and 9b.

Fuel Tank Corrosion Treatment Procedure

Using a stiff nylon brush and Motorcraft Metal Brake Parts Cleaner, clean the top surface area of all four (4) corner brackets and surrounding area of the center tank flange.
NOTE: DO NOT use a metal or wire brush or scraper. This will compromise the coatings on the tank.
Clean the area around the fuel fill and vent tubes.
Clean the spot welds on top of the tank.
Wipe clean with shop towel.

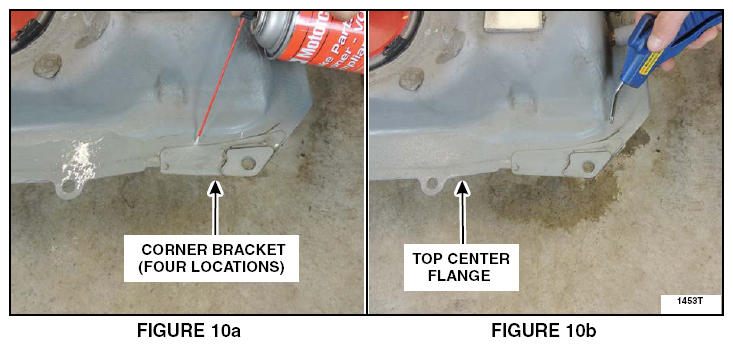

Spray Motorcraft Metal Brake Parts Cleaner under each of the corner brackets using the supplied aerosol spray tube. See Figure 10a.
Use compressed air regulated to approximately 137 kpa (20 psi) to spray under the corner brackets to clean/dry the surfaces under them. See Figure 10b.

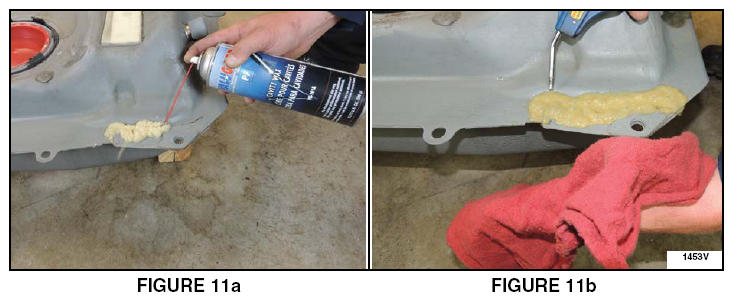

Spray anti-corrosion treatment under each corner bracket using the supplied aerosol spray tube. See Figure 11a.
Use compressed air regulated to approximately 137 kpa (20 psi) to force the anti-corrosion treatment under each of the corner brackets. See Figure 11b.
Repeat spraying a second application of anti-corrosion treatment under each of the corner brackets but DO NOT use compressed air on the second application.
NOTE: Before applying anti-corrosion treatment to the fuel tank surface, cover the filler neck and vent tube with a suitable cover to keep these areas free of the treatment. See Figure 12a.

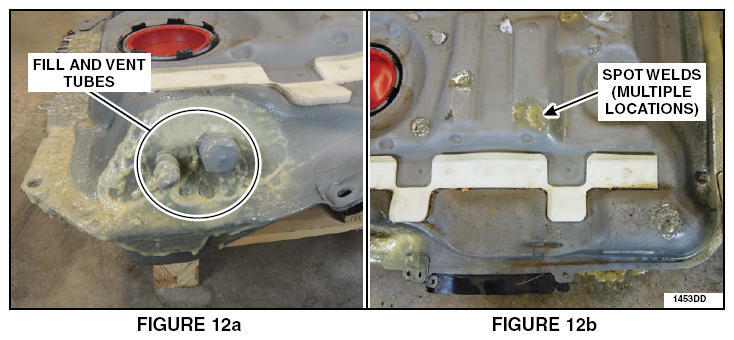

Remove the aerosol tube and apply a heavy coat of anti-corrosion treatment over the following areas of the fuel tank: See Figures 7 and 12a-12d.

Around the fill and vent tubes.
All spot welds on top of the tank.

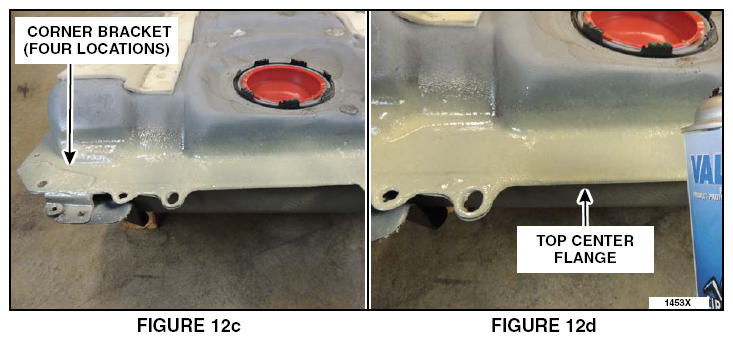

Corner bracket areas.

On the top center flange around the entire perimeter of the tank.

Reinstall the fuel tank per the Fuel Tank Installation Procedure below.

Fuel Tank Installation Procedure

All Vehicles

NOTE: If installing a new fuel tank, the fuel pump module and the fuel level sensor (AWD) must be transferred to the new fuel tank (lubricate the fuel level sensor seal with clean oil to aid in sensor installation), following the procedures in Section 310-01.

Using a suitable lifting device, raise the fuel tank into position.
Install the four (4) new fuel tank bolts (one at each corner).
- Tighten to 25 Nm (18 lb-ft).
NOTE: The brackets may need to be loosened slightly to reposition them if the center bracket to tank attaching holes do not line up. If necessary, safely heat the bolts using the procedure in the Fuel Tank Removal Procedure.

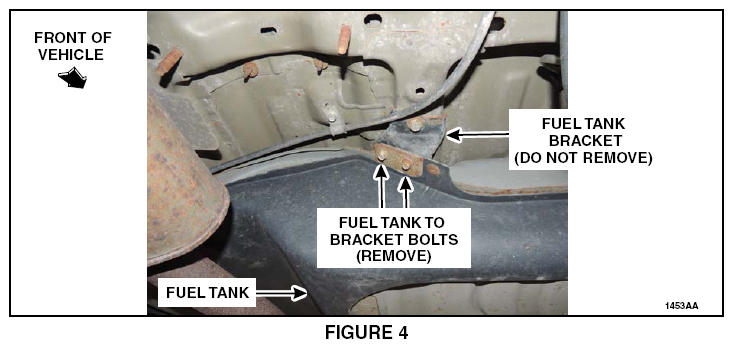

Install the four (4) new fuel tank to bracket bolts. See Figure 4.
- Tighten to 25 Nm (18 lb-ft).
Position the parking brake cables and install the two (2) parking brake cable bracket bolts.
- Tighten to 23 Nm (17 lb-ft).
Connect the fuel tank jumper tube-to-fuel tank quick connect coupling. Please follow WSM procedures in Section 310-00.
Connect the fuel tank pressure sensor.
Connect the fuel tank wiring harness connector.
FWD Vehicles
Attach the three (3) muffler and tailpipe assembly isolators. See Figure 1.
AWD Vehicles
Position the driveshaft and install the two (2) or four (4) new center bearing support nuts. See Figure 3.
- Tighten to 40 Nm (30 lb-ft).
Position the driveshaft and install the four (4) new rear u-joint flange bolts. See Figure 3.
- Tighten to 70 Nm (52 lb-ft).
NOTE: Install a new Torca® clamp, if necessary, following WSM procedures in Section 309-00.
Install the muffler and tailpipe assembly and attach the four (4) isolators. See Figure 2.
All Vehicles
Connect the battery ground cable. Please follow WSM procedures in Section 414-01.

LINCOLN OWNER NOTIFICATION LETTER

FORD OWNER NOTIFICATION LETTER

FORD:	2007-2008 Edge
LINCOLN:	2007-2008 MKX

Regional Program 14R02 - Fuel Tank Corrosion Inspection And Repair (14R02)
