Air Conditioning (A/C) Compressor - 6.0L Diesel: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

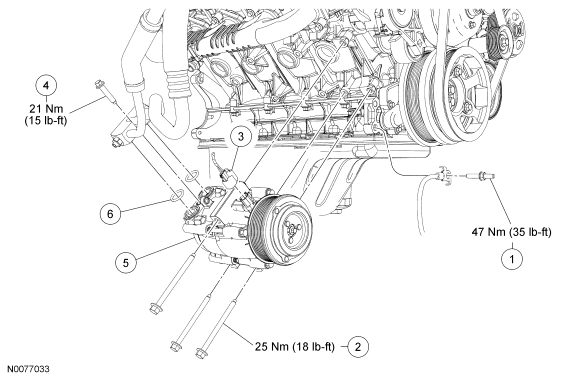

| Item | Part Number | Description |
|---|---|---|
| 1 | W704692 | Wire harness stud |
| 2 | W709520 | A/C compressor bolt (3 required) |
| 3 | 12A581 | Clutch field coil electrical connector |
| 4 | W704692 | Compressor manifold bolt |
| 5 | 19703 | A/C compressor |
| 6 | 19E889 | O-ring seal (2 required) |
