Fuel Pump Driver Module (FPDM): Notes

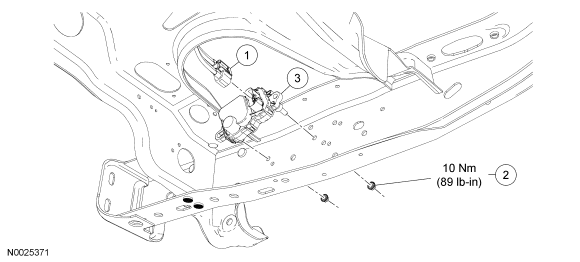

Fig 1: Exploded View Of Fuel Pump Driver Module FPDM With Torque Specifications
GF0011953Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Fuel pump driver module (FPDM) electrical connector (part of 14406)
2 W705448 FPDM nut (2 required)
3 9D372 FPDM
