Side Impact Reinforcement: Notes

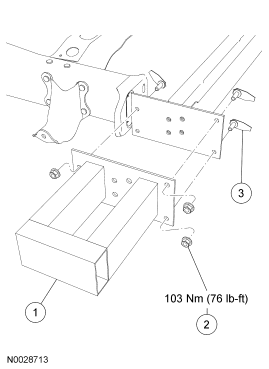

Fig 1: Side Impact Reinforcement With Torque Specifications
GF0011589Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Side impact reinforcement
2 - Side impact reinforcement nut (8 required)
3 - Side impact reinforcement bolt (8 required)
