Injection Control Pressure Sensor Connector

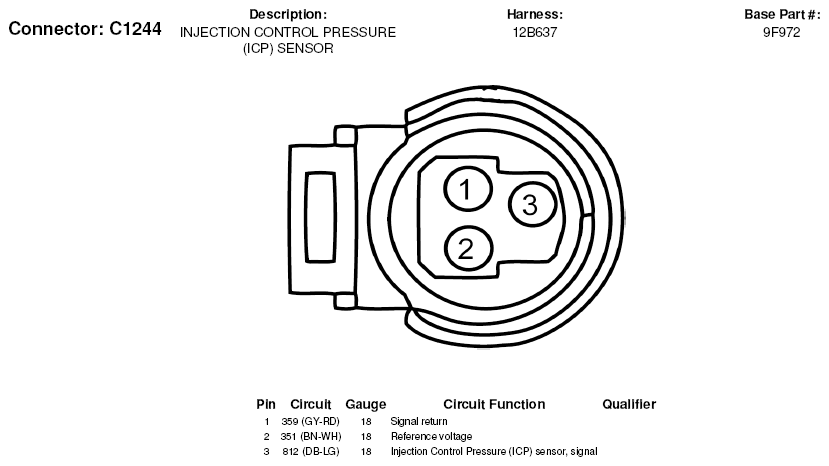

Fig 1: Injection Control Pressure Sensor Connector End View (C1244)

G05181337

Courtesy of FORD MOTOR CO.
