Electronic Flasher Module Connector

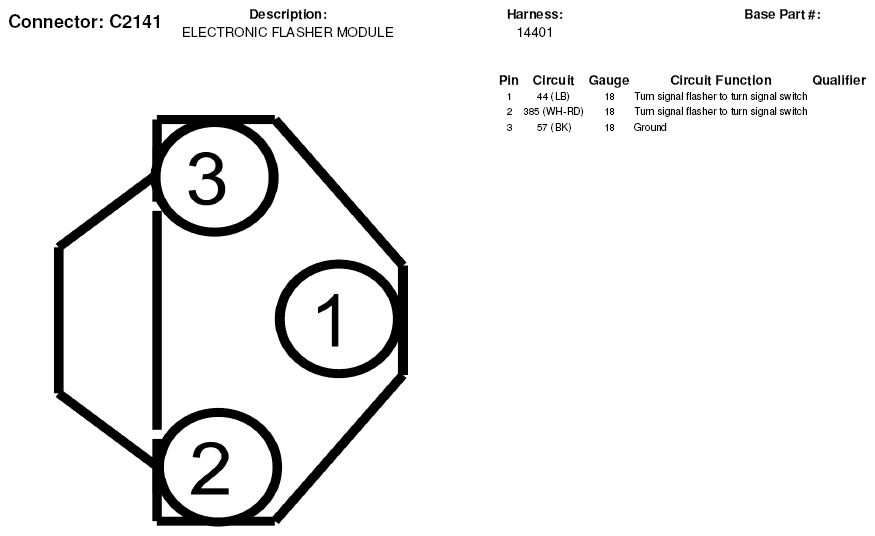

Fig 1: Electronic Flasher Module Connector End View (C2141)

G05181393

Courtesy of FORD MOTOR CO.
