Exhaust Manifold - LH: Notes

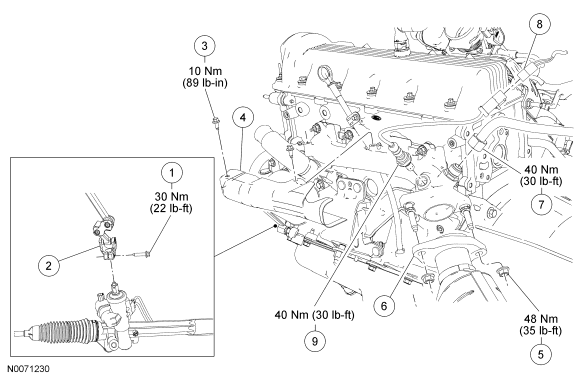

Fig 1: Exploded View Of LH Exhaust Manifold (With Torque Specifications - 1 Of 2)
GF0013588Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W710821 Intermediate steering shaft pinch bolt
2 3C662 Intermediate steering shaft
3 W707130 Exhaust manifold heat shield bolt (2 required)
4 9Y423 Exhaust manifold heat shield
5 N811485 Catalytic converter-to-exhaust manifold nut (2 required)
6 5F250 Catalytic converter flange
7 9D477 EGR system module tube
8 14A464 Heated oxygen sensor (HO2S) electrical connector (12B637)
9 9Y472 HO2S sensor

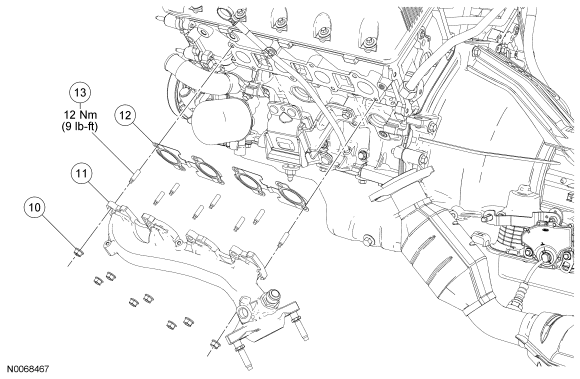

Fig 2: Exploded View Of LH Exhaust Manifold (With Torque Specifications - 1 Of 2)
GF0013589Courtesy of FORD MOTOR CO.
Item Part Number Description
10 W701706 Exhaust manifold nut (8 required)
11 9431 Exhaust manifold
12 9448 Exhaust manifold gasket (2 required)
13 W707747 Exhaust manifold stud (8 required)
