Safety Belt Buckle - Front: Notes

NOTE: LH shown, RH similar.
NOTE: Seat backrest and armrest removed for clarity.

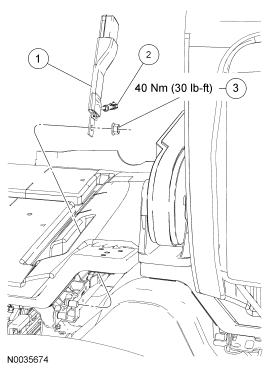

Fig 1: Exploded View Of Front Safety Belt Buckle With Torque Specifications
GF0013297Courtesy of FORD MOTOR CO.
Item Part Number Description
1 61202 RH/ 61203 LH Safety belt buckle
2 - Electrical connector
3 - Nut, safety belt buckle
