Hydraulic Control Unit (HCU): Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

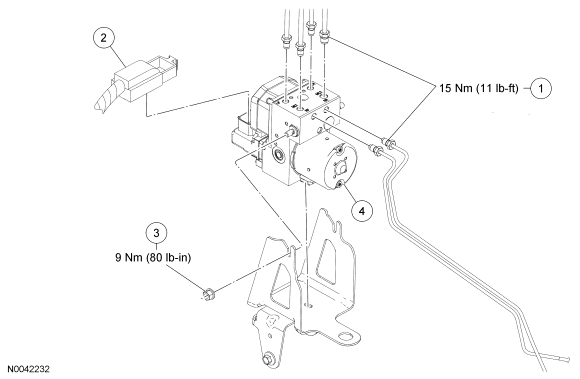

Fig 1: Exploded View Of Hydraulic Control Unit HCU With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C296	Brake tube fittings (6 required)
2	-	Anti-lock brake system (ABS) module electrical connector
3	2C229	Hydraulic control unit (HCU)-to-mounting bracket nut (2 required)
4	2C286	Hydraulic control unit (HCU)
