Restraints Control Module (RCM): Notes

NOTE: Carpet is removed for clarity.

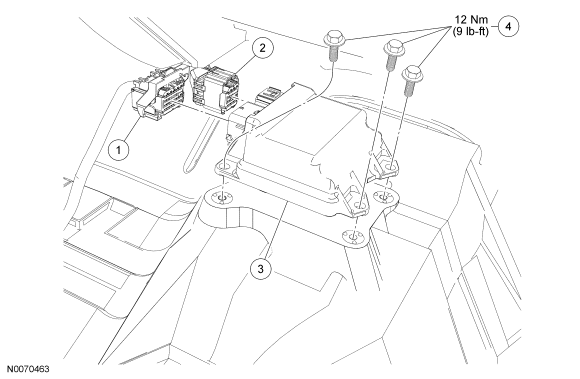

Fig 1: Exploded View Of Restraints Control Module With Torque Specifications
GF0013453Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Large restraints control module (RCM) connector (part of 14A005)
2 - Small RCM connector (part of 14401)
3 14B321 RCM
4 W707935 RCM bolts
