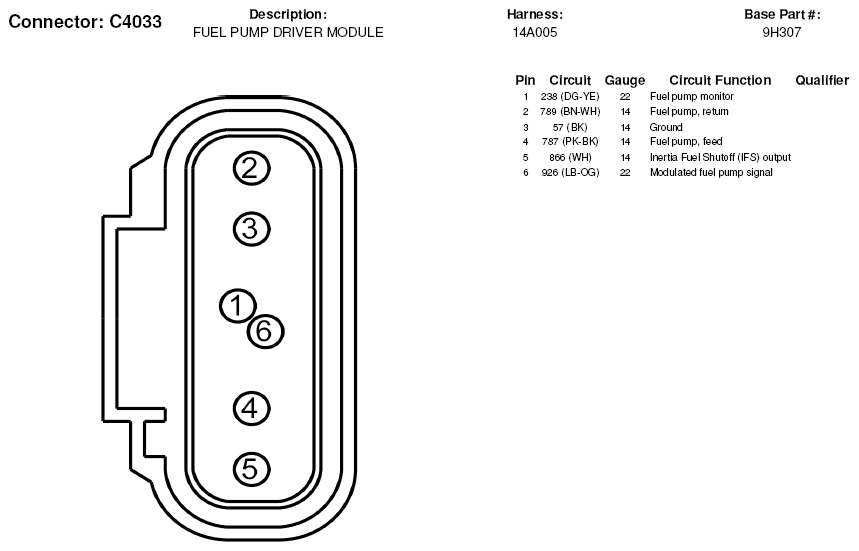

Home >> Ford >> 2007 >> Crown Victoria Base, 4.6 W >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Fuel Pump Driver Module Connector
