EGR System Module Connector

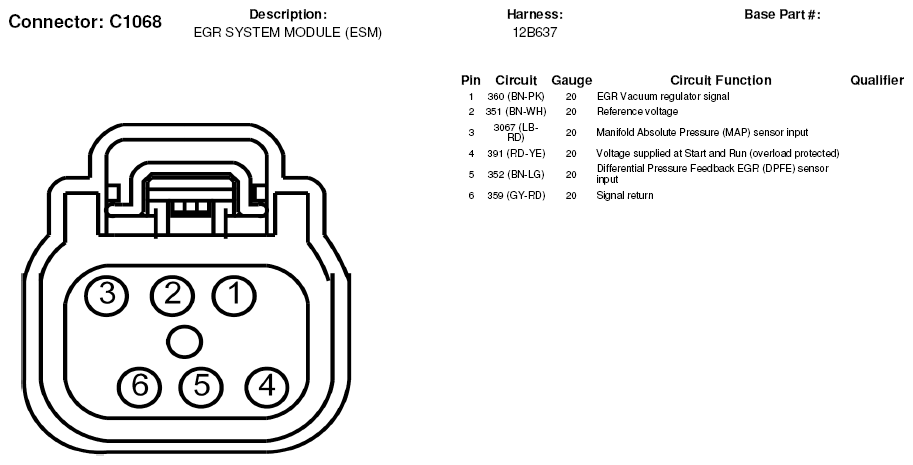

Fig 1: EGR System Module Connector End View (C1068)

G05178172

Courtesy of FORD MOTOR CO.
