Subframe - Front: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	3-Bar Engine Support Kit
	303-F072
Courtesy of FORD MOTOR CO.	Engine Lifting Bracket
	303-050 (T70P-6000)
Courtesy of FORD MOTOR CO.	Thread Protector
	211-212 (T96P-3010-A2)
Courtesy of FORD MOTOR CO.	Remover Steering Arm
	211-003 (T64P-3590-F)
Courtesy of FORD MOTOR CO.	Adapter for 211-5200
	211-211 (T96-3010-A1)

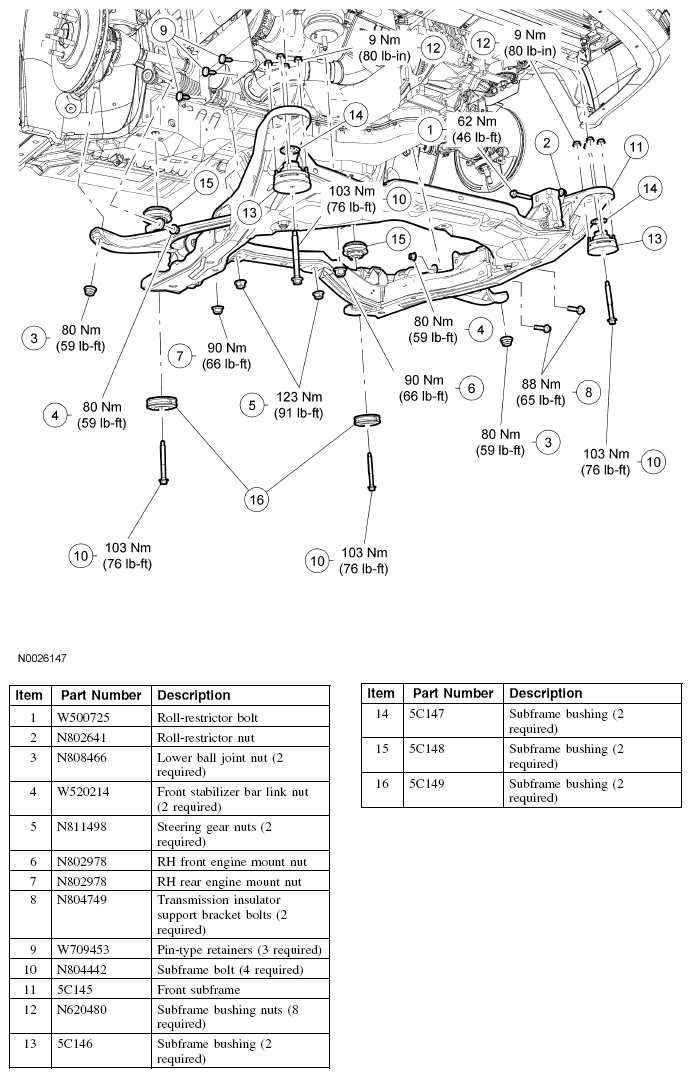

Fig 1: Subframe Replacement Components -- Front With Torque Specifications

G04712105

Courtesy of FORD MOTOR CO.
