Home >> Ford >> 2006 >> Taurus SEL, 3.0 2 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Brake Shift Interlock Actuator - Column Shift >> Notes

Brake Shift Interlock Actuator - Column Shift: Notes

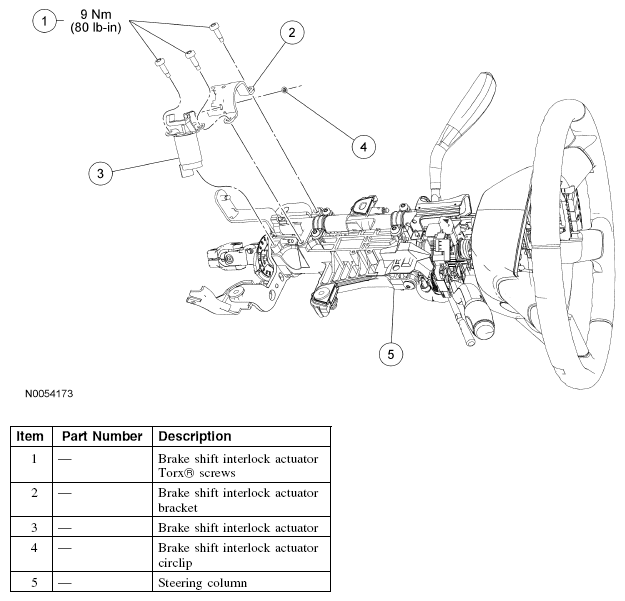

Fig 1: Exploded View Of Brake Shift Interlock Actuator - Column Shift With Torque Specifications

G04710559

Courtesy of FORD MOTOR CO.
