Home >> Ford >> 2006 >> Taurus SE, 3.0 2 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Selector Lever Cable and Bracket - Column Shift >> Notes

Selector Lever Cable and Bracket - Column Shift: Notes

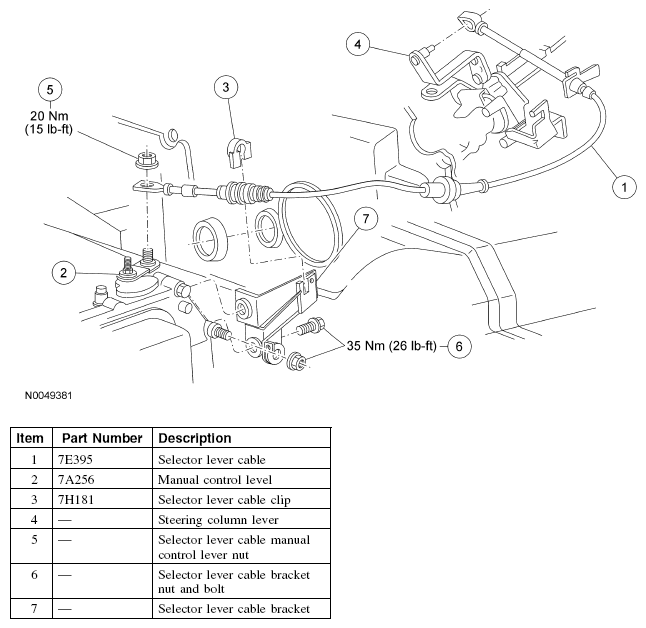

Fig 1: Disconnecting Selector Lever Cable And Bracket - Column Shift With Torque Specifications
G04710566Courtesy of FORD MOTOR CO.
