Seat - Exploded View, Front

Front Seat Backrest

NOTE: Driver seat shown, passenger seat similar.

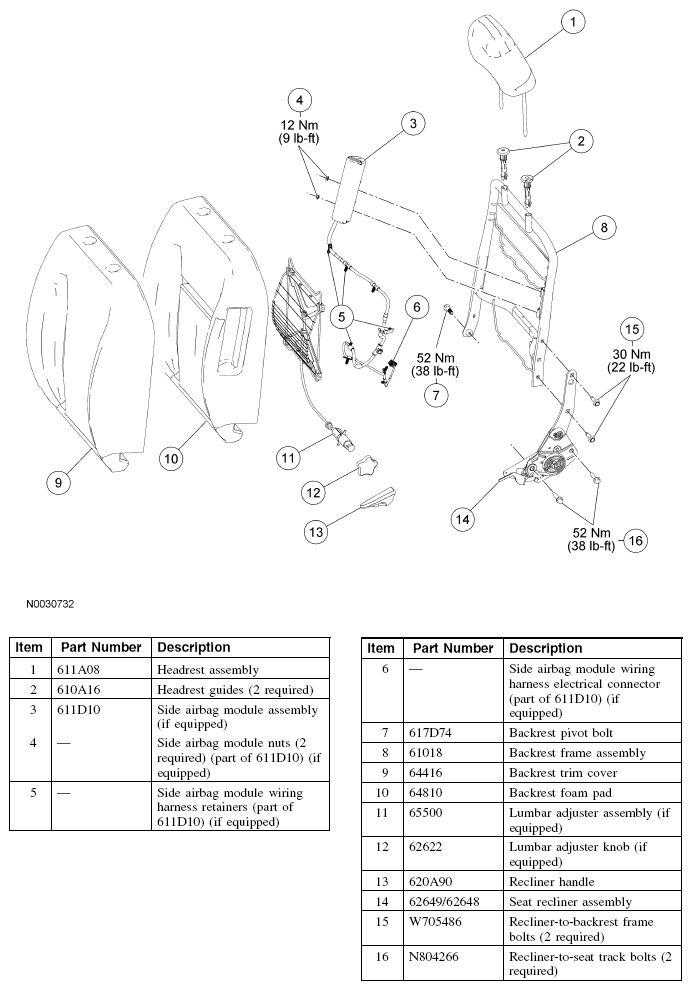

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications
G04711545Courtesy of FORD MOTOR CO.

Front Seat Cushion

NOTE: Driver seat shown. For disassembly and assembly of the passenger seat cushion, refer to OCCUPANT CLASSIFICATION SENSOR .

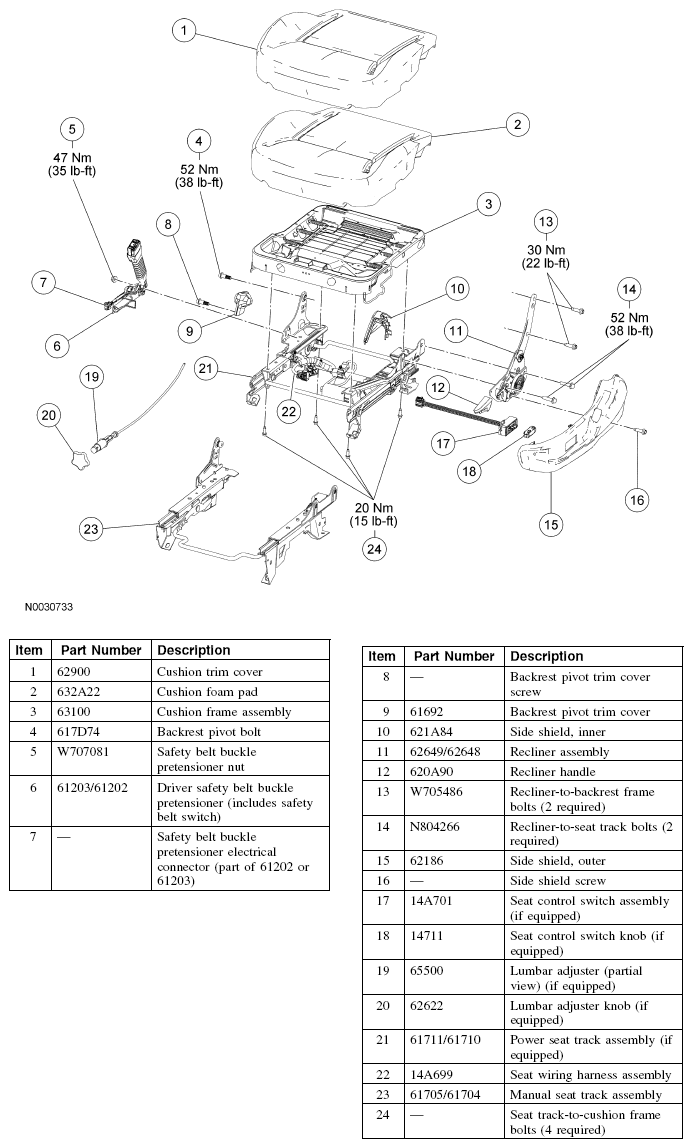

Fig 2: Exploded View Of Front Seat Cushion With Torque Specifications
G04711546Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
