Notes
Power Steering Fluid Cooler: Notes
MATERIAL SPECIFICATION
Item
Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)
MERCON®
NOTE:
4.0L shown, 4.6L and 5.4L similar.

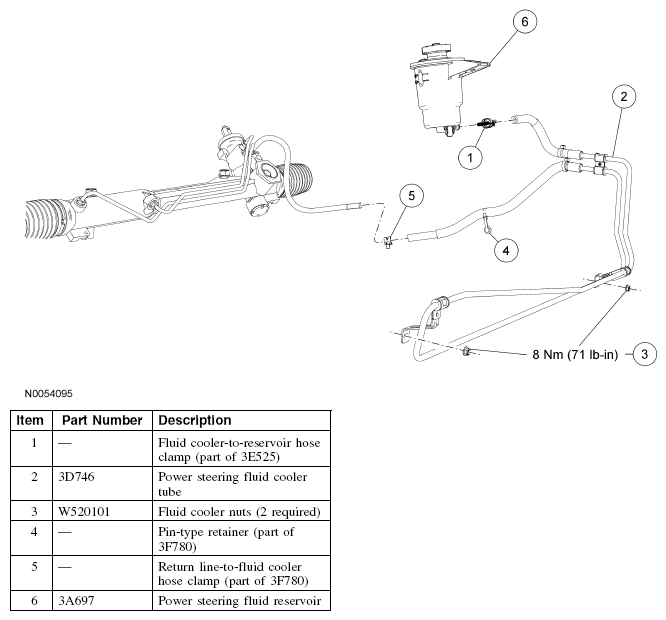

Fig 1: Power Steering Fluid Cooler Replacement Components - With Torque Specifications
