Throttle Body: Notes

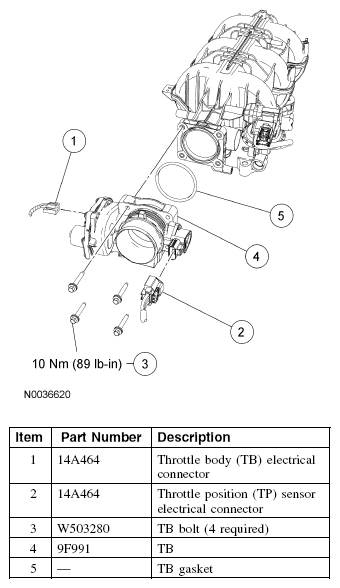

Fig 1: Identifying Throttle Body Components
G04695946Courtesy of FORD MOTOR CO.
