Seat - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

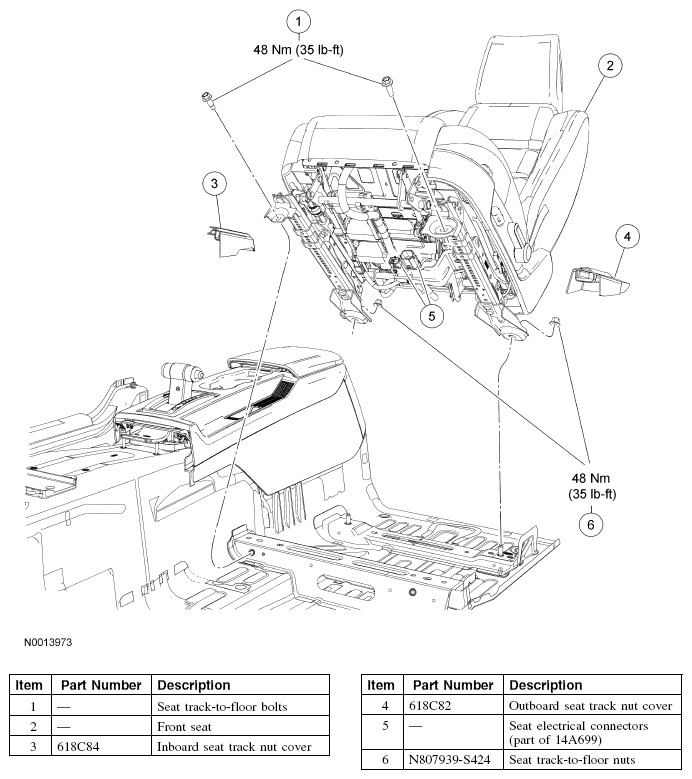

Fig 1: Seat Replacement Components -- Front - With Torque Specifications

G04697933
