Seat - Exploded View, Front

NOTE: Driver backrest shown, passenger backrest similar.

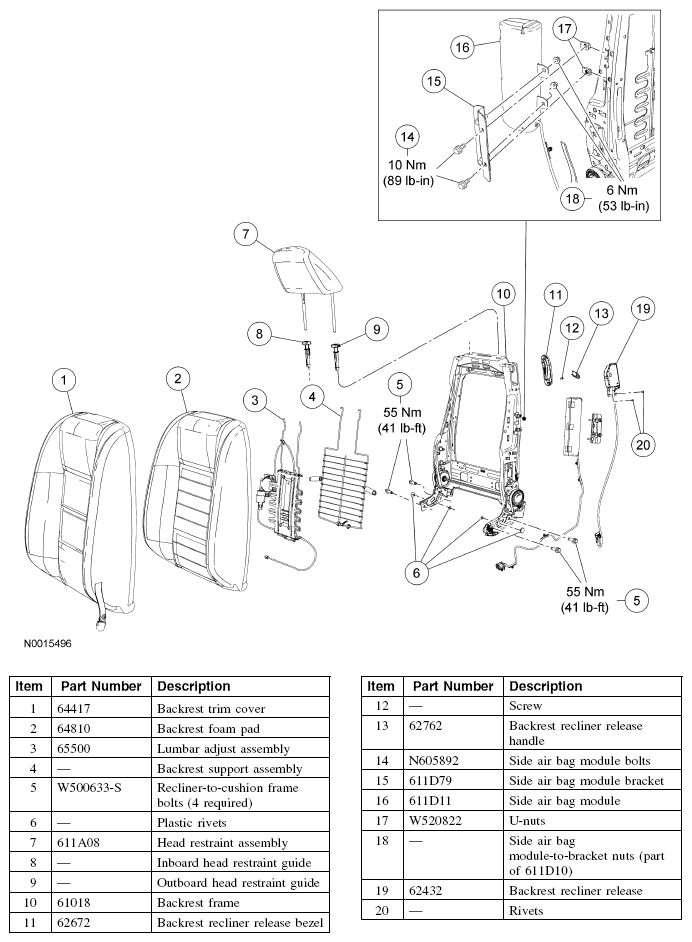

Fig 1: Exploded View Of Front Seat Backrest - With Torque Specifications
G04697934

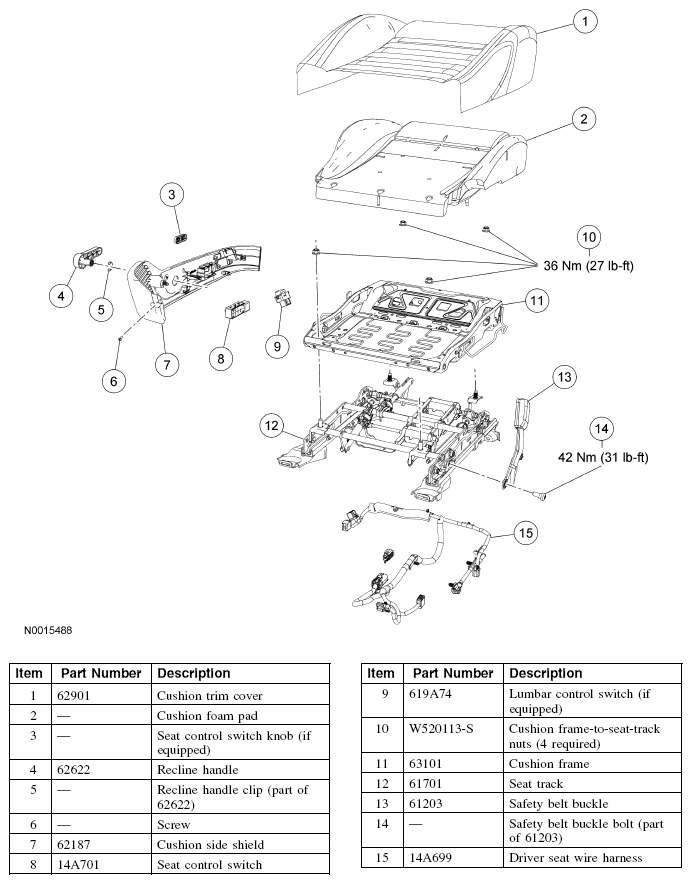

Fig 2: Exploded View Of Driver Power Front Seat Cushion - With Torque Specifications
G04697935

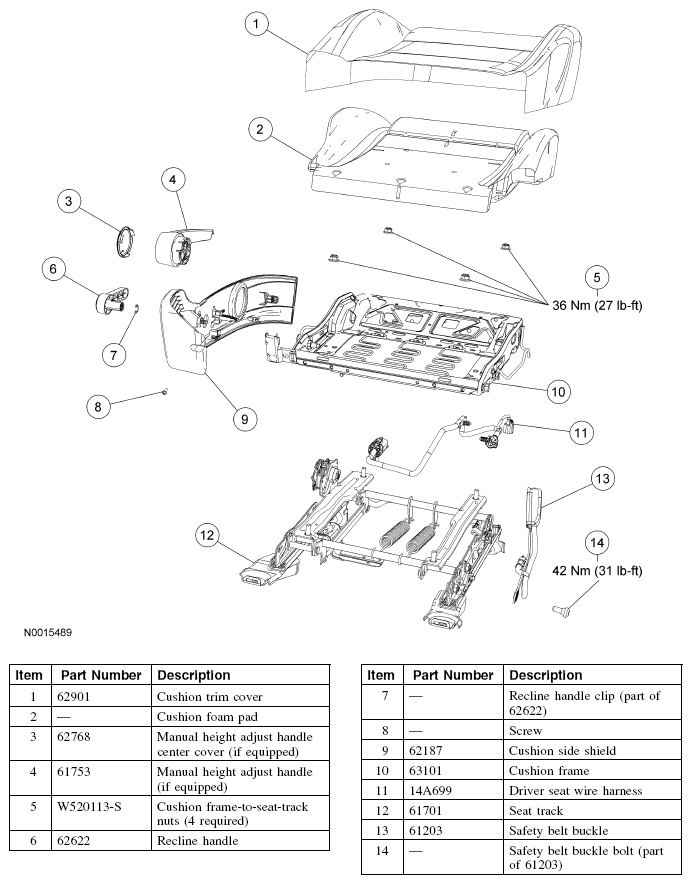

Fig 3: Exploded View Of Driver Manual Front Seat Cushion - With Torque Specifications
G04697936

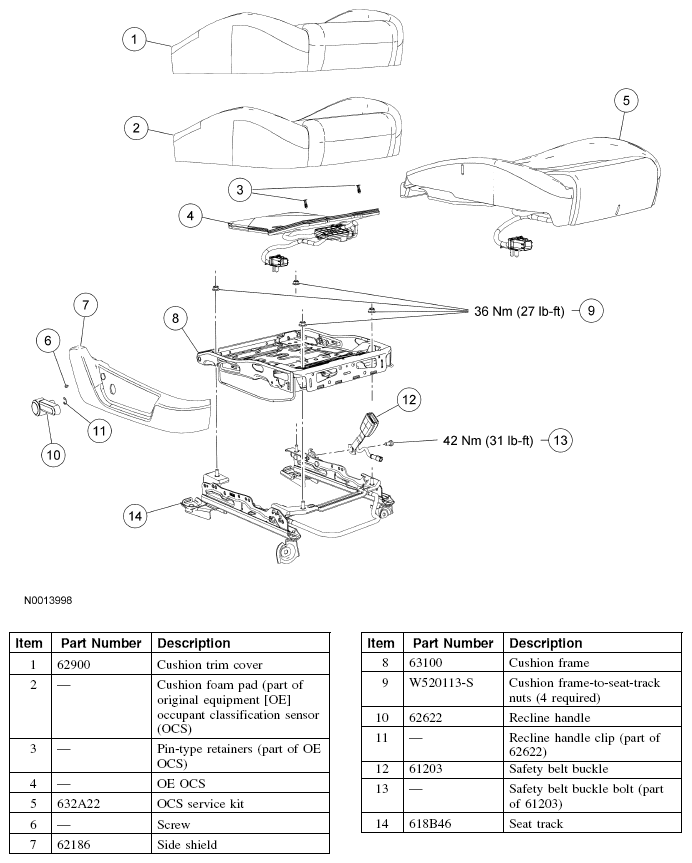

Fig 4: Exploded View Of Passenger Front Seat Cushion - With Torque Specifications
G04697937
  1. For additional information, refer to the appropriate procedures in this article.
