Selector Lever Cable and Bracket: Notes

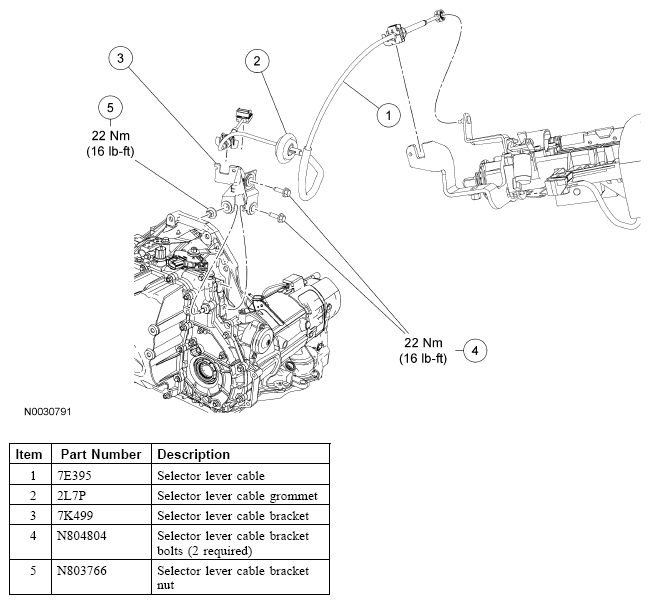

Fig 1: Selector Lever Cable And Bracket With Torque Specification

G04661788

Courtesy of FORD MOTOR CO.
