Child Safety Seat Tether Anchor - Second Row, Bucket Seat: Notes

NOTE: RH seat shown, LH seat similar.

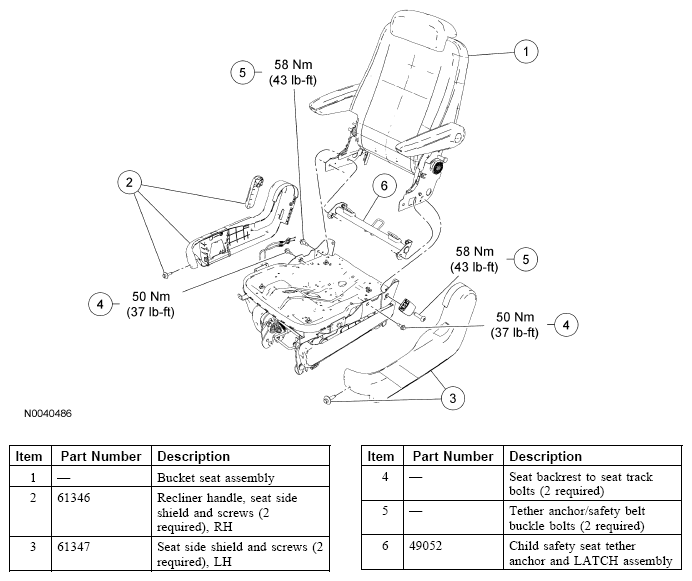

Fig 1: Exploded View Of Child Safety Seat Tether Anchor - Second Row, Bucket Seat With Torque Specification's
G04663661Courtesy of FORD MOTOR CO.
