Air Conditioning (A/C) Compressor: Notes

MATERIALS

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D WSH-M1C231-B

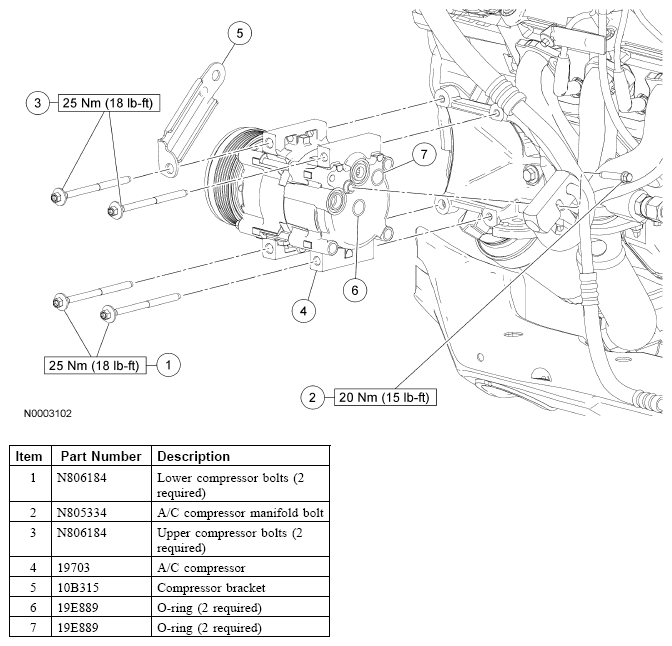

Fig 1: Air Conditioning (A/C) Compressor Replacement Components With Torque Specifications's
G04662175Courtesy of FORD MOTOR CO.
