Auxiliary Climate Control Housing: Notes

MATERIAL SPECIFICATION

Item Specification
PAG Refrigerant Compressor Oil for R134a Systems YN-12-D WSH-M1C231-B

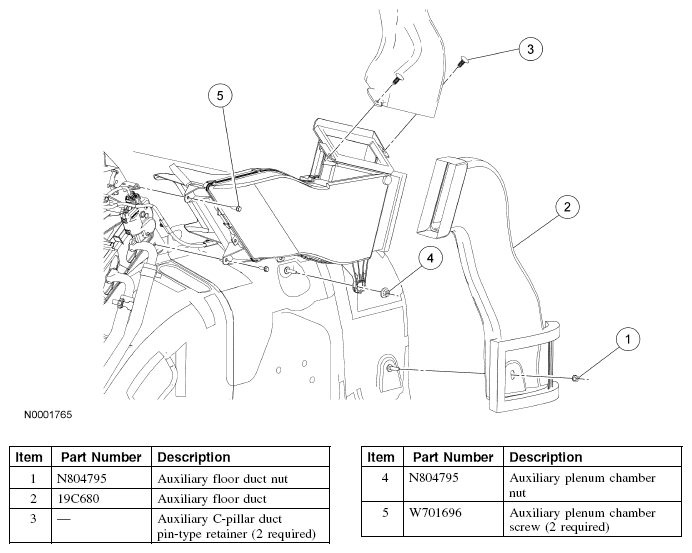

Fig 1: Identifying Auxiliary Climate Control Housing Components (1 Of 2)
G04662258Courtesy of FORD MOTOR CO.

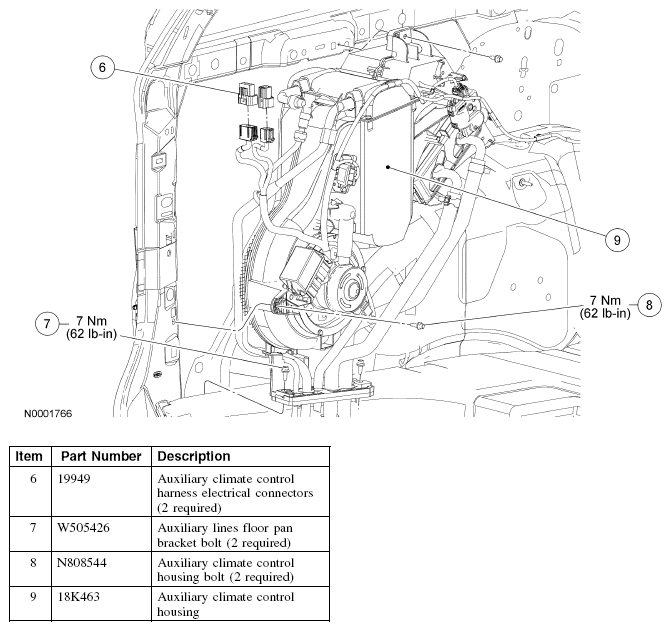

Fig 2: Auxiliary Climate Control Housing Replacement Components -- With Torque Specifications (2 Of 2)
G04662259Courtesy of FORD MOTOR CO.
