Seat - Exploded View, Second Row, Bench Seat

NOTE: Seat with optional cupholder shown, seat without cupholder similar.

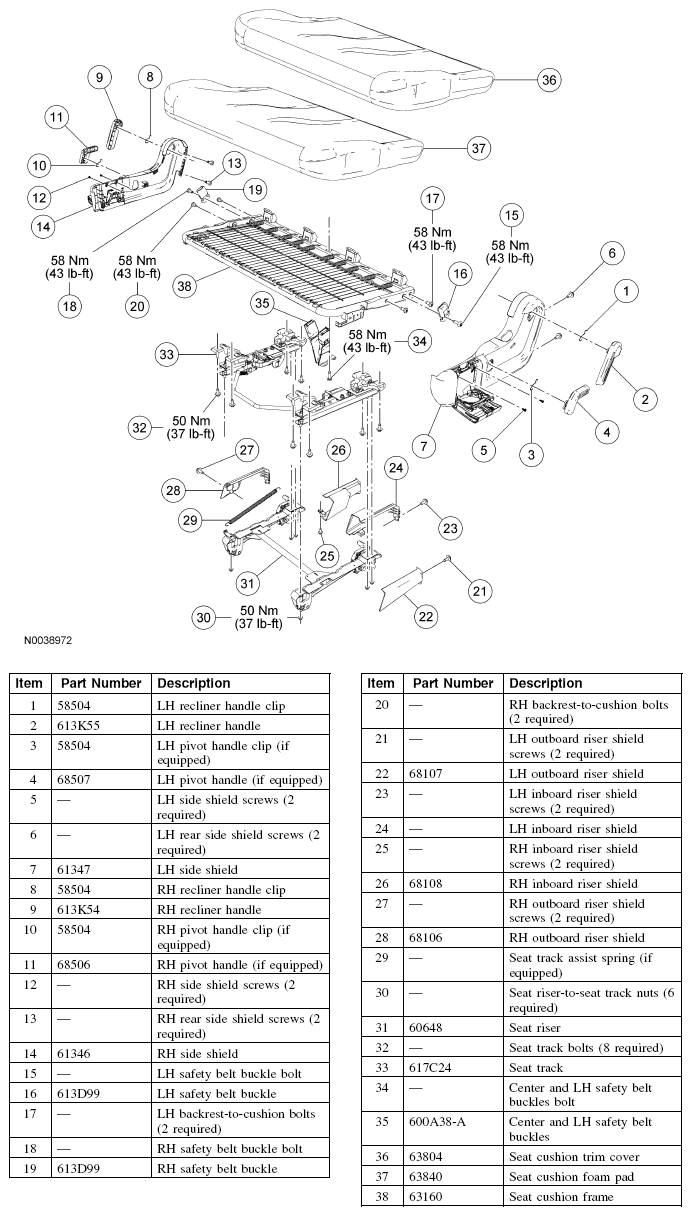

Fig 1: Exploded View Of Rear Seat Cushion - Second Row, Bench Seat With Torque Specifications

Courtesy of FORD MOTOR CO.

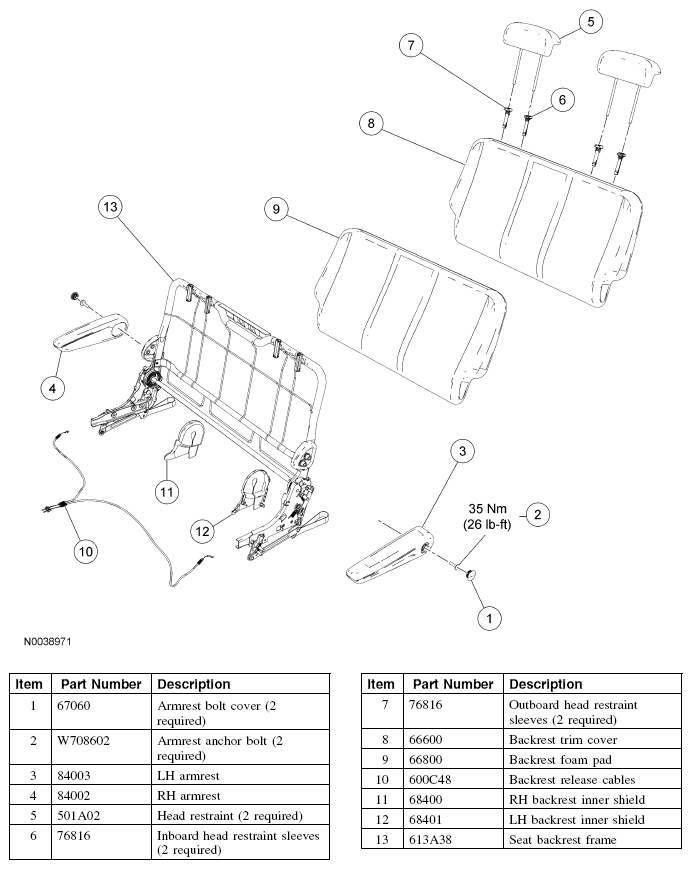

Fig 2: Exploded View Of Rear Seat Backrest - Second Row, Bench Seat With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
