Seat Cushion - Second Row, Bench: Notes

NOTE: Seat with optional cup holder shown, seat without cup holder similar.

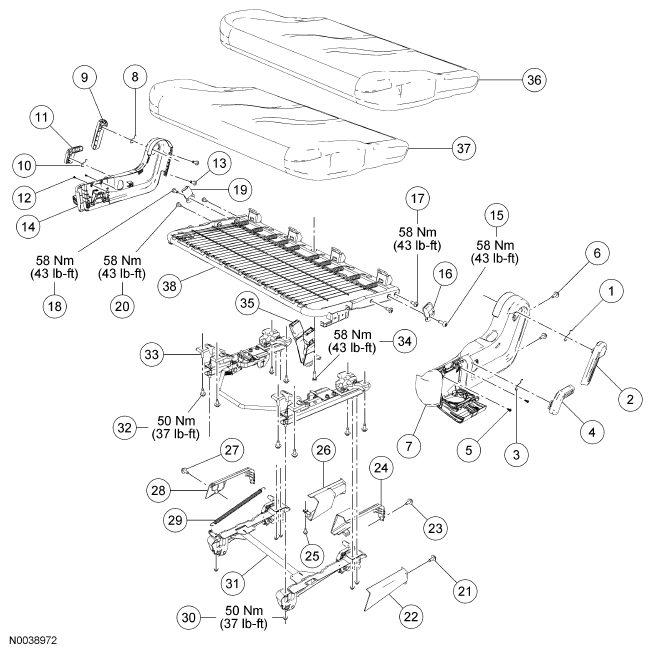

Fig 1: Exploded View Of Seat Cushion - Second Row, Bench With Torque Specifications
G04663346Courtesy of FORD MOTOR CO.

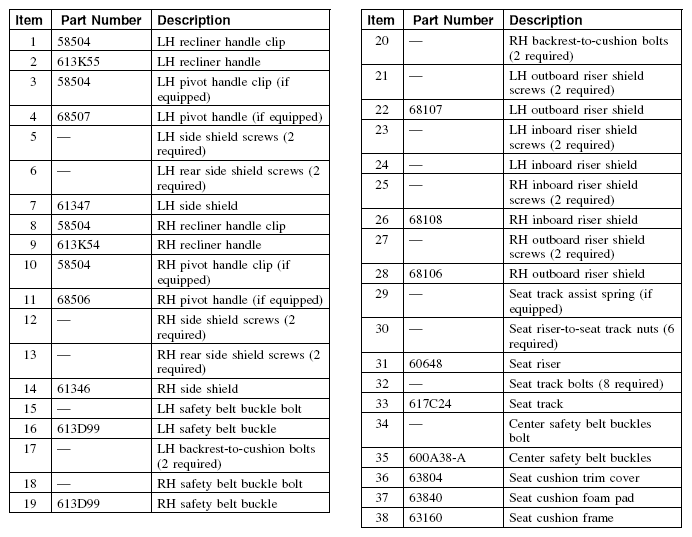

Fig 2: Seat Cushion - Second Row, Bench Reference Table
G04663347Courtesy of FORD MOTOR CO.
