Seat Cushion - Front, Driver Side: Notes

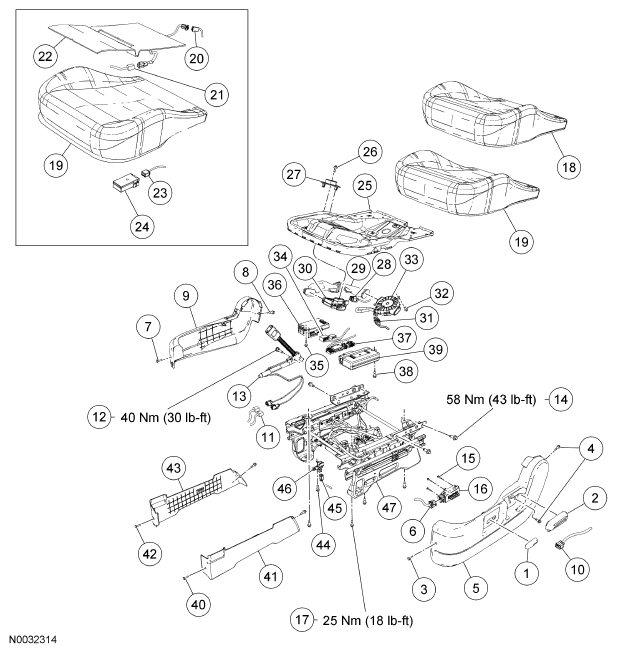

Fig 1: Exploded View Of Seat Cushion - Front, Driver Side With Torque Specifications
G04663336Courtesy of FORD MOTOR CO.

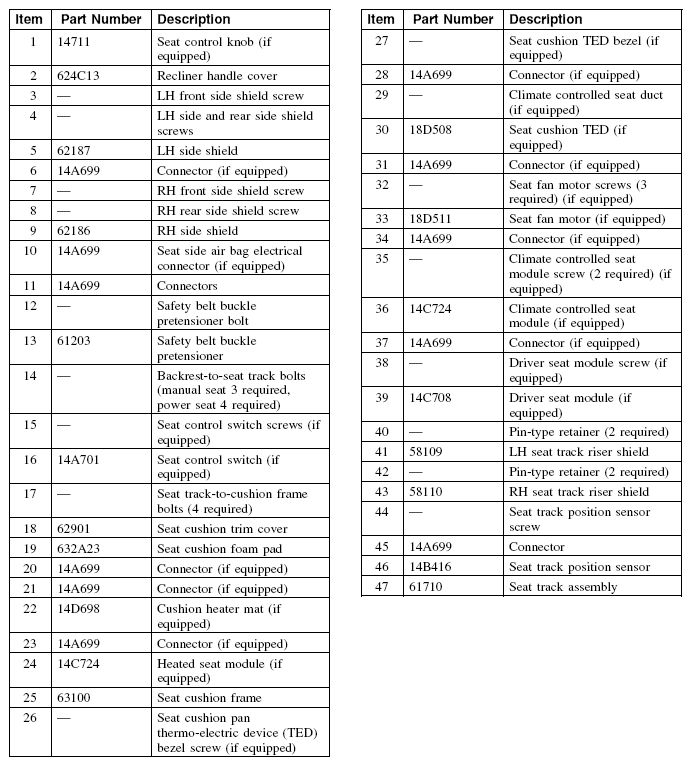

Fig 2: Seat Cushion - Front, Driver Side Reference Table
G04663337Courtesy of FORD MOTOR CO.
